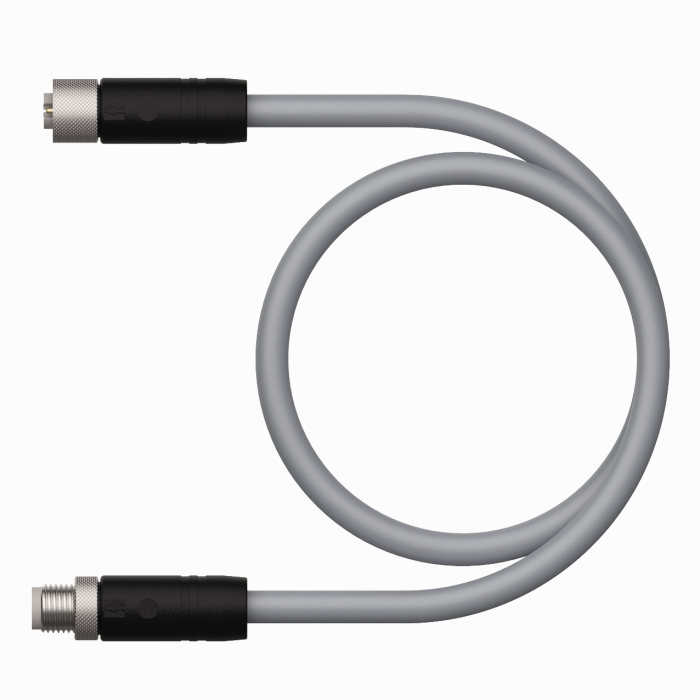

Supply Cable - M12 Power

RKS56PLB-0.3-RSS56PLB/TXG

Order ID no. 100023940

Cable length (m): 0.3
Application: Power
Design: Extension Cable
Connector A: Female, M12 × 1, Straight, L-coded
Number of pins: 4+FE
Coupling nut/screw material A: Brass
Connector B: Male, M12 × 1, Straight, L-coded
Number of Pins: 4+FE
Coupling nut/screw material B: Brass
Current (A): 16
Cable quality: PUR
Cable color: Gray
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Approvals: cULus
Ambient temperature min. (°C): -30
Ambient temperature max. (°C): 80
Core cross-section (mm²): 1.5
Number of Conductors: 5

In Stock
List Price	€74.00
