VBS02-S80E-0.3-WSC5.31T/TEL | TURCK - Your Global Automation Partner

VBS02-S80E-0.3-WSC5.31T/TEL

VBS02-S80E-0.3-WSC5.31T/TEL

VBS02-S80E-0.3-WSC5.31T/TEL

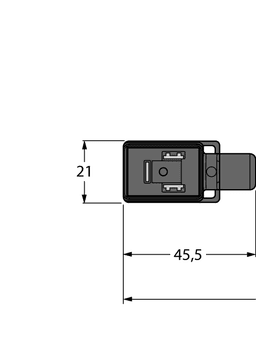

Thumbnail for VBS02-S80E-0.3-WSC5.31T/TEL

Thumbnail for VBS02-S80E-0.3-WSC5.31T/TEL

Thumbnail for VBS02-S80E-0.3-WSC5.31T/TEL

Valve connector B type

VBS02-S80E-0.3-WSC5.31T/TEL

Order ID no. 6606840

homeHome
Loading...

Cable length: 0.3
Application: Signal
Design: Extension Cable

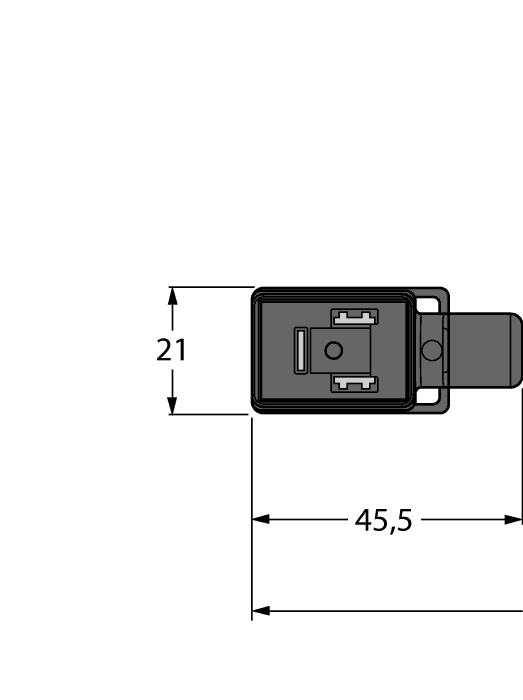

Connector A: Valve connector, Design B
Number of pins: 2+PE

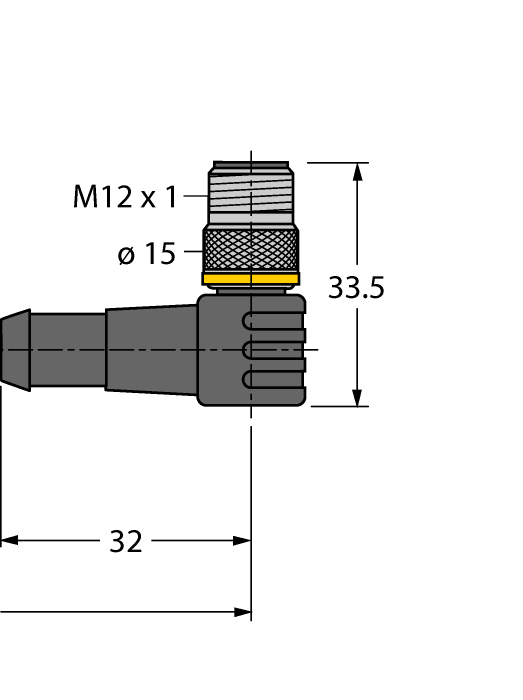

Connector B: Male, M12 × 1, Angled
Number of Pins: 2+PE
Coupling nut/screw material B: Brass
Voltage: 24
Current: 4
Cable quality: PVC
Cable color: Black
Ambient temperature min.: 0
Ambient temperature max.: 80
Core cross-section: 0.34
Number of Conductors: 3

Key Features

Cable length: 0.3
Cable quality: PVC
Connector A: Valve connector, Design B
Connector B: Male, M12 × 1, Angled

In Stock
Price Group	K2
List Price	€24.00
