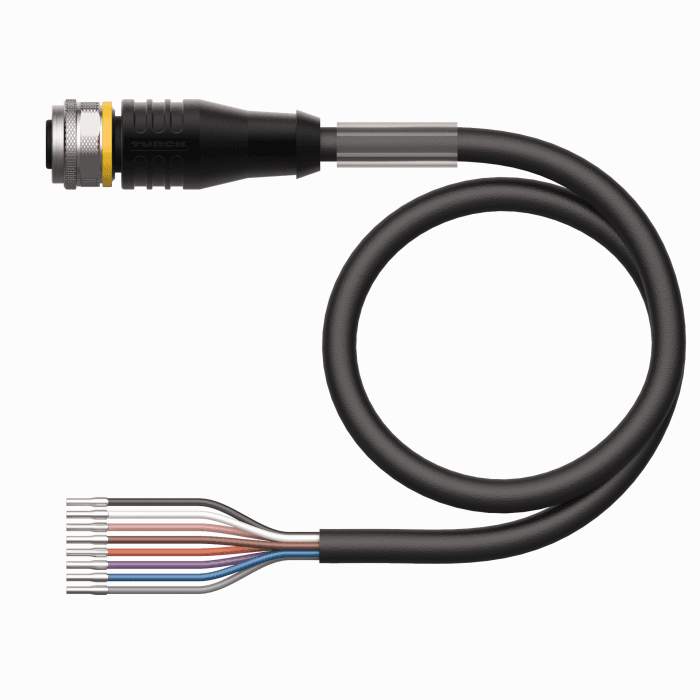

Actuator and Sensor Cable, PUR

RKS8T-8.5/TXL

Order ID no. 6625490

Cable length: 8.5
Application: Signal
Design: Connection Cable
Connector A: Female, M12 × 1, Straight, A-coded
Number of pins: 8
Coupling nut/screw material A: Brass
Voltage: 30
Current: 2
Cable quality: PUR
Cable color: Black
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Approvals: cULus
Ambient temperature min.: -25
Ambient temperature max.: 80
Core cross-section: 0.25
Number of Conductors: 8
