Actuator and Sensor Cable, PUR

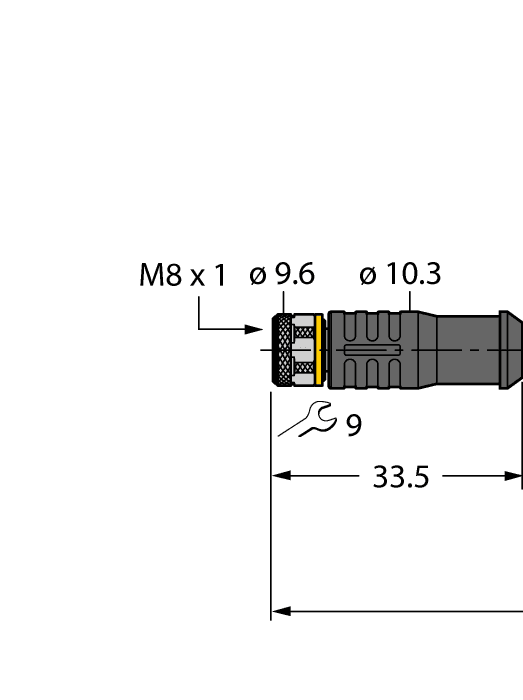

PKGS4M-0.2-PSGS4M/TXL

Order ID no. 6627687

In Stock
List Price

Cable length (m): 0.2
Application: Signal
Design: Extension Cable
Connector A: Female, M8 × 1, Straight
Number of pins: 4
Coupling nut/screw material A: Brass
Connector B: Male, M8 × 1, Straight
Number of Pins: 4
Coupling nut/screw material B: Brass
Current (A): 4
Cable quality: PUR
Cable color: Black
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Approvals: cULus
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 80
Core cross-section (mm²): 0.34
Number of Conductors: 4
