Actuator and Sensor Cable, PUR

WKSV4.5T-10/TXL

Order ID no. 6629355

Cable length: 10
Application: Signal
Design: Connection Cable

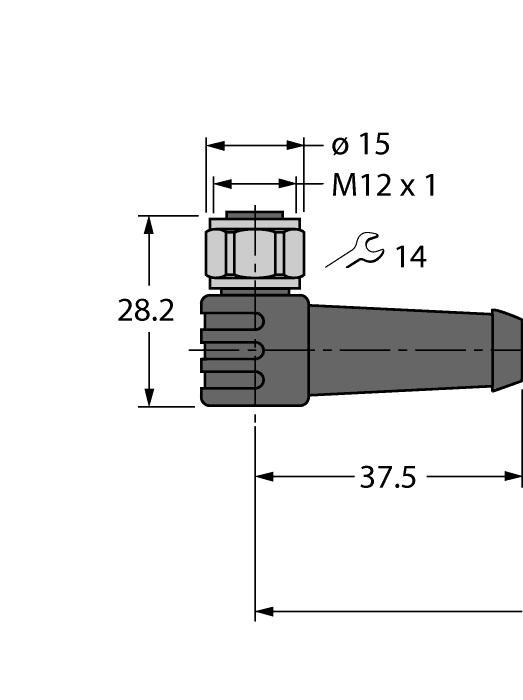

Connector A: Female, M12 × 1, Angled, A-coded
Number of pins: 5
Coupling nut/screw material A: Stainless Steel
Voltage: 60
Current: 4
Cable quality: PUR
Cable color: Black
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Approvals: cULus
Ambient temperature min.: -25
Ambient temperature max.: 80
Core cross-section: 0.34
Number of Conductors: 5
