WSSD-WSSD-4422-10M | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

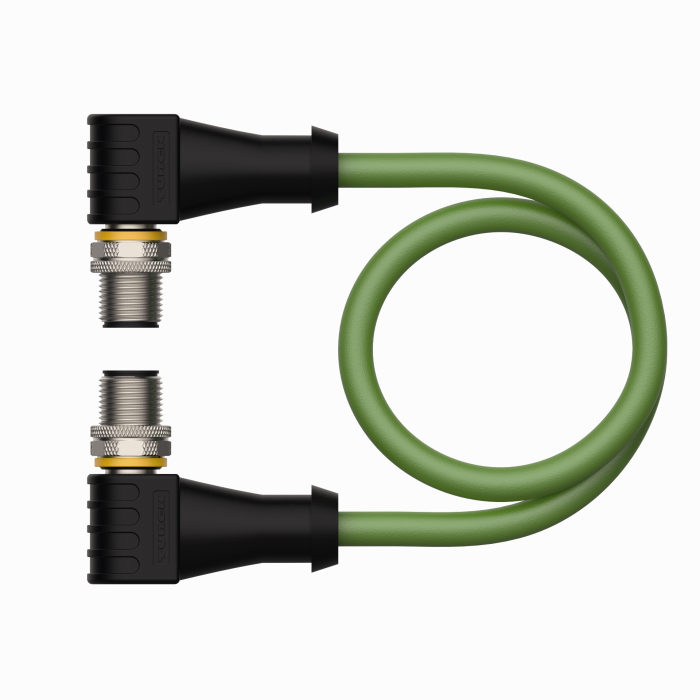

Industrial Ethernet Cable
WSSD-WSSD-4422-10M
Order ID no. 6635190
home
Home
Loading...
Technical Data
Cable length (m)
10
Ambient temperature min. (°C)
-30
Ambient temperature max. (°C)
80
Application
Data
Number of Conductors
4
Core cross-section (mm²)
0.32
Network protocol
Ethernet
Cable quality
PUR
Cable color
Green
Approvals
UL Listed

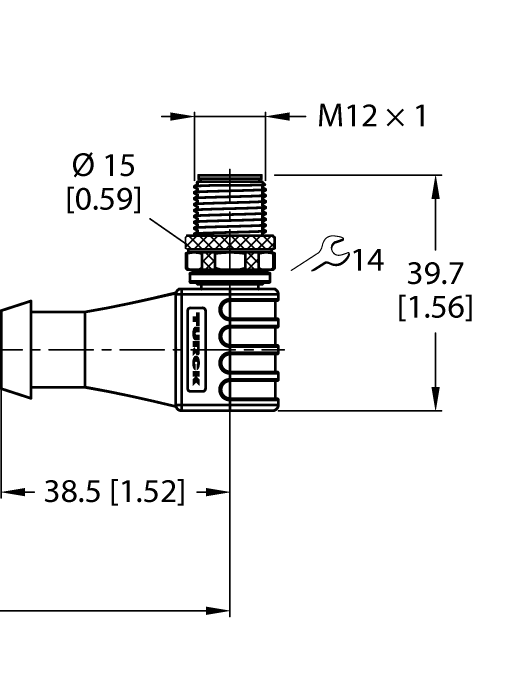

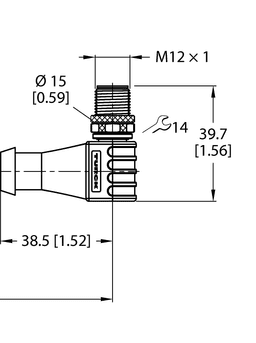

Connector A
Male, M12 × 1, Angled, D-coded
Number of Pins
4
Voltage (V)
30
Current (A)
4
Coupling nut/screw material A
Brass
Coupling nut/screw material B
Brass
Design
Extension Cable

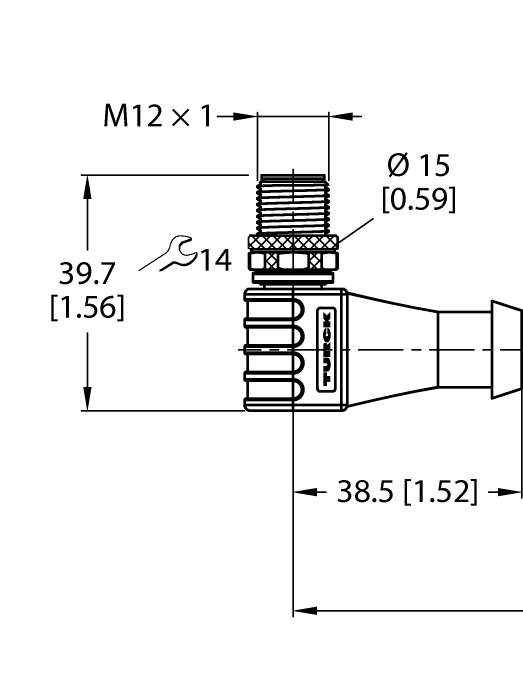

Connector B
Male, M12 × 1, Angled, D-coded
Number of Pins
4
Key Features
Cable length (m)
10
Cable quality
PUR
Connector A
Male, M12 × 1, Angled, D-coded
Connector B
Male, M12 × 1, Angled, D-coded
In Stock
Price Group
K2
List Price
€73.00
