Actuator and Sensor Cable, PUR

WSSV8T-1.15/TXL

Order ID no. 6636222

Cable length (m): 1.15
Application: Signal
Design: Connection Cable

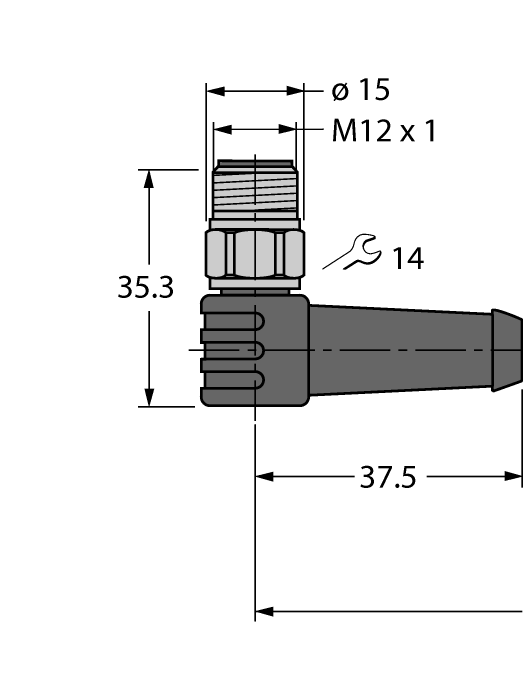

Connector A: Male, M12 × 1, Angled, A-coded
Number of pins: 8
Coupling nut/screw material A: Stainless Steel
Voltage (V): 30
Current (A): 2
Cable quality: PUR
Cable color: Black
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Approvals: cULus
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 80
Core cross-section (mm²): 0.25
Number of Conductors: 8

In Stock
List Price	€30.00
