PROFIBUS Cable

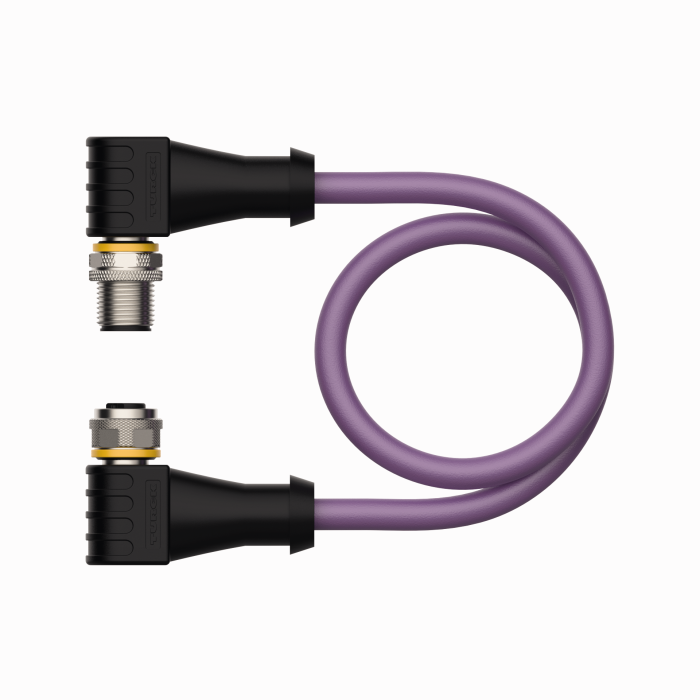

WSSW-WKSW451-3M
Order ID no. 6915946
home
Home
Loading...
Technical Data
Network protocol
PROFIBUS-DP
Cable length
3
Application
Data
Design
Extension Cable
Connector A
Male, M12 × 1, Angled, B-coded
Number of pins
5
Coupling nut/screw material A
Brass
Connector B
Female, M12 × 1, Angled, B-coded
Number of Pins
5
Coupling nut/screw material B
Brass
Voltage
60
Current
4
Cable quality
PUR
Cable color
Violet
Approvals
UL
Ambient temperature min.
-25
Ambient temperature max.
80
Core cross-section
0.34
Number of Conductors
2
Key Features
Cable length
3
Cable quality
PUR
Connector A
Male, M12 × 1, Angled, B-coded
Connector B
Female, M12 × 1, Angled, B-coded
In Stock
Price Group
K1
List Price
€66.00
