TBEN-L5-4RFID-8DXP-OPC-UA | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

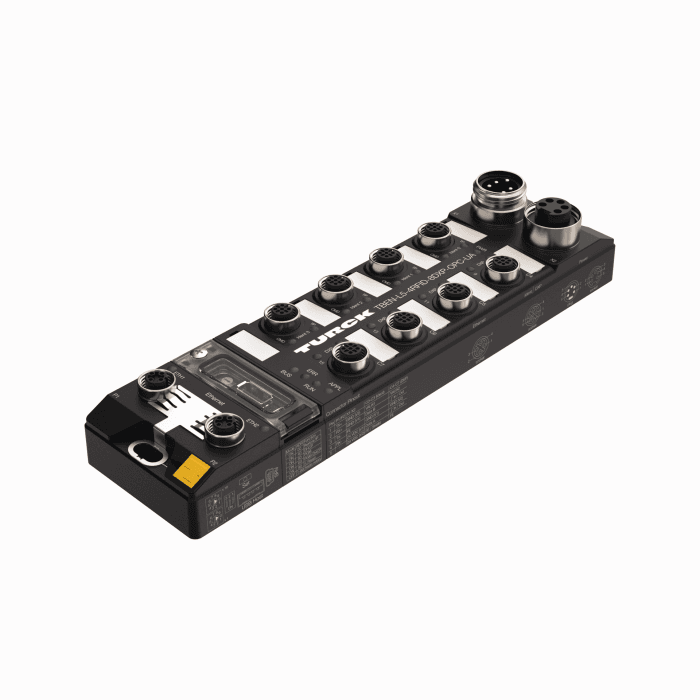

Compact RFID Module for OPC-UA
TBEN-L5-4RFID-8DXP-OPC-UA
Order ID no. 6814126
In Stock
Price Group
D1
List Price
€1,127.00
home
Home
Loading...
Technical Data
Protection class
IP65, IP67, IP69K
Network protocol
OPC UA
Cable length (m)
50
Approvals
ATEX Zone 2/22, cULus, IECEx
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
70
Operating voltage
DC
Number of channels
12
Installation area
zone 2, zone 22
Output voltage
24 VDC from potential group
Connection technology signal
M12
Signal type
RFID, Digital input, Digital input/output, Digital output
Connection technology Ethernet
2 x M12, 4-pin, D-coded
Transmission rate Ethernet
10/100 Mbps
Key Features
Network protocol
OPC UA
Number of channels
12
Protection class
IP65, IP67, IP69K
