PVA300N6RQ | TURCK - Your Global Automation Partner
Pick-to-Light

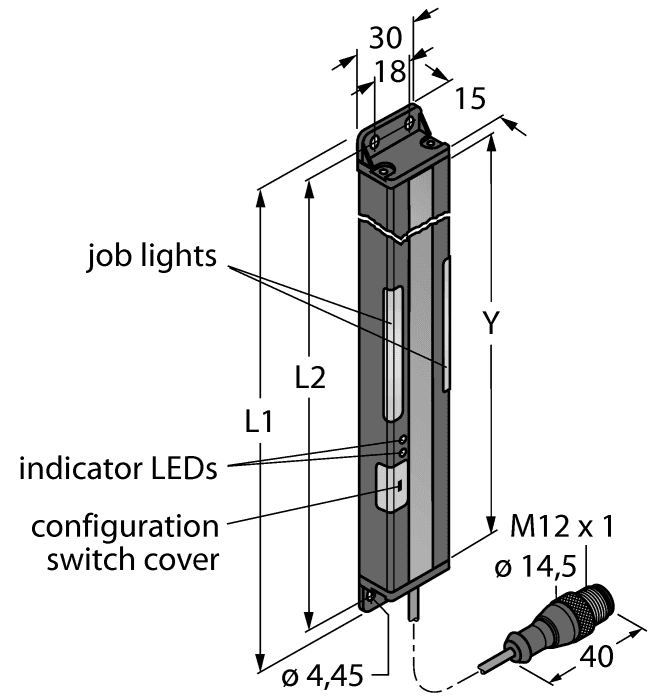

PVA300N6RQ
Order ID no. 3051923
home
Home
Loading...
Technical Data
Protection class
IP62
Switching element function
NO/NC
Output function
NPN
Cable length
2
Design
Rectangular
Electrical connection
Cable with connector
Connector type
M12 × 1
Housing material
Metal
Housing quality
AL
Ambient temperature min.
0
Ambient temperature max.
50
Max. range
2000
Function
Opposed mode sensor
Operating voltage
DC
Input type
Bipolar (PNP/NPN)22
Scan field
300
Optical resolution
25
Construction size
341.4 x 30 x 15 mm
Number of colors/segments
1
Number of beams
13
Key Features
Scan field
300
Output function
NPN
Number of colors/segments
1
In Stock
Price Group
F3
List Price
€617.00
