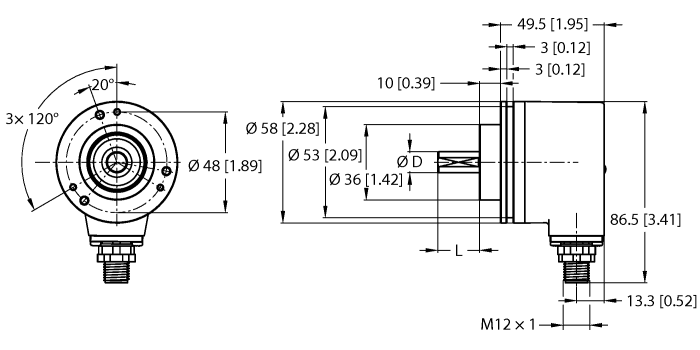

Absolute Rotary Encoder - Singleturn
RES-186S10C-3C13B-H1181
Order ID no. 100016315
In Stock
Price Group
F3
List Price
€540.00
Item Total
€540.00
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Encoders
RES-186S10C-3C13B-H1181
Technical Data
Protection class
IP67
Communication protocol
SSi
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Die-cast zinc
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
85
Measuring principle
Optical
Output type
Absolute singleturn
Shaft Type
Solid shaft
Shaft diameter D (mm)
10 mm
Flange diameter (mm)
58
Flange type
Clamping flange
Measuring range
0…360°
Base unit
PCE
EAN/UPC code
4047101545609
Gross weight
462
Height
95
Length
130
Net weight
462
Dimension unit
MMT
Weight unit
GRM
Volume
1.914
Volume unit
DMQ
Width
155
Design
Solid shaft
Encoder line
Industrial-Line
Technology
Optical
Protection class shaft
IP67
Key Features
Output type
Absolute singleturn
Flange diameter (mm)
58
Shaft diameter D (mm)
10
Shaft Type
Solid shaft
