BI20R-Q14-AP6X2-H1141 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Inductive Sensor

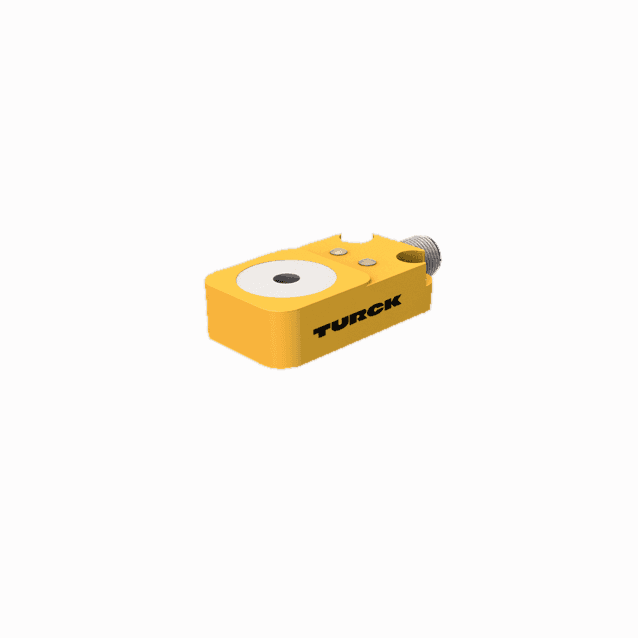

BI20R-Q14-AP6X2-H1141
Order ID no. 1407300
home
Home
Loading...
Technical Data
Design
Ring sensor
Protection class
IP67
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
PBT-GF30-V0
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Output function
PNP
Switching element function
NO contact
Operating voltage
DC
Construction size

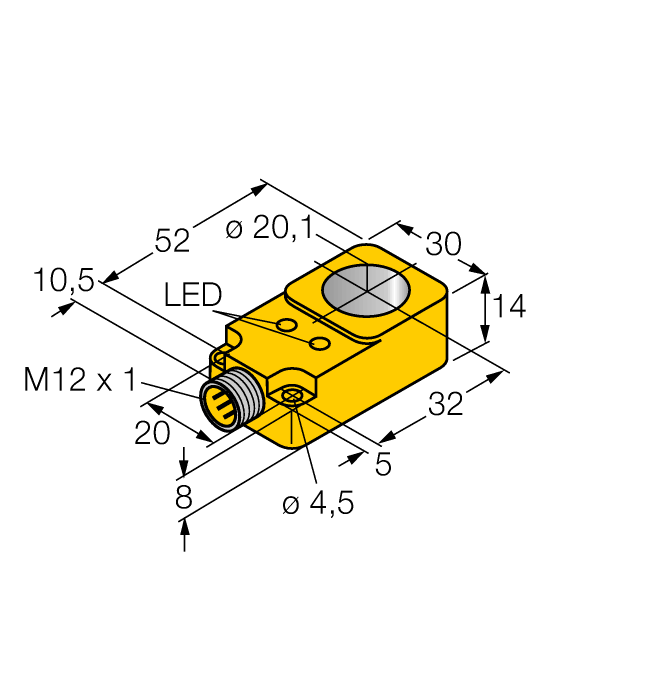

62.5 x 30 x 14 mm
Inside ring diameter D (mm)
20.1
Key Features
Electrical connection
Connector
Output function
PNP
In Stock
Price Group
E1
List Price
€145.00
