NI3-EG08K-AN6X | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

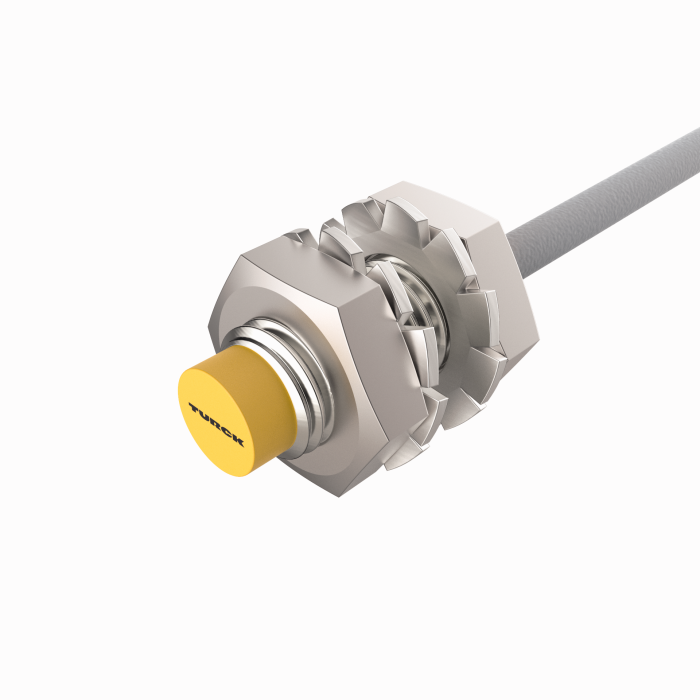

Inductive Sensor
NI3-EG08K-AN6X
Order ID no. 4669700
In Stock
Price Group
E1
List Price
€86.00
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
NO contact
Output function
NPN
Cable length (m)
2
Cable color
Gray
Design
Threaded barrel
Electrical connection
Cable
Housing material
Stainless steel
Housing quality
1.4305 (AISI 303)
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Mounting conditions
Non-flush
Operating voltage
DC
Rated switching distance (mm)
3
Construction size
M8 x 1
Key Features
Electrical connection
Cable
Mounting conditions
Non-flush
Output function
NPN
Rated switching distance (mm)
3
