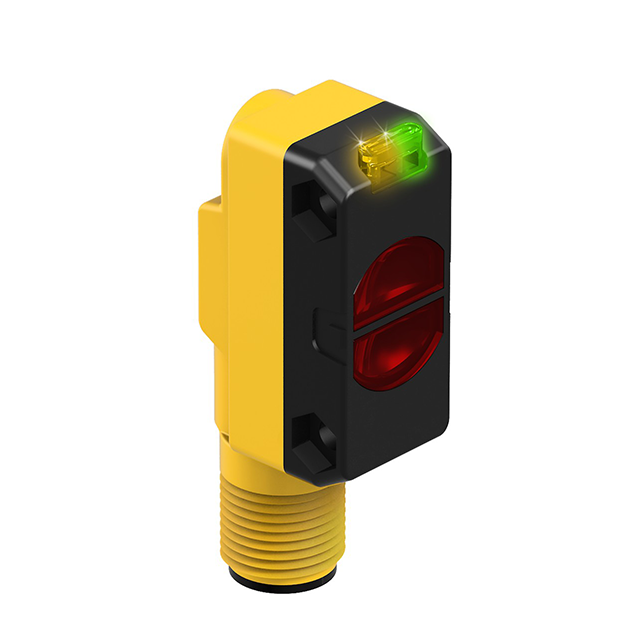

Photoelectric Sensor
QS18EP6WQ8
Order ID no. 3071997
home
Home
Loading...
Technical Data
Design
Rectangular
Protection class
IP67
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Plastic
Housing quality
ABS
Ambient temperature min. (°C)
-20
Ambient temperature max. (°C)
70
Max. range (mm)
300
Output function
PNP
Switching element function
NO contact
Function
Proximity switch
Light type
IR
Construction size
21.1 x 15 x 35 mm
Key Features
Light type
IR
Function
Proximity switch
Output function
PNP
Max. range (mm)
300
home
Turck-Shop
Sensors
Photoelectric Sensors
QS18EP6WQ8
In Stock
Price Group
F3
List Price
€103.00
Item Total
€103.00
