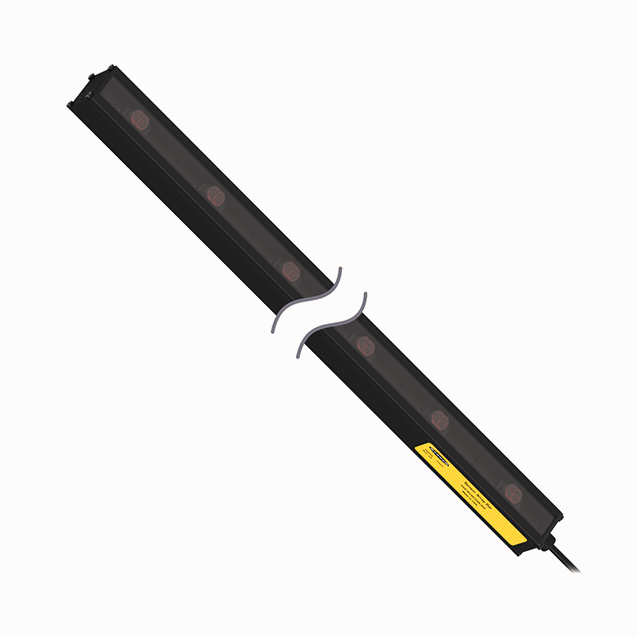

Photoelectric Sensor
SAB-497AB1DS6-Q5E
Order ID no. 3805075
home
Home
Loading...
Technical Data
Cable length (m)
0.15
Design
Rectangular
Protection class
IP50
Electrical connection
Cable with connector
Connector type
M12 × 1
Housing material
Metal
Housing quality
Anodized AL
Ambient temperature min. (°C)
-20
Ambient temperature max. (°C)
55
Max. range (mm)
200
Output function
PNP/NPN
Switching element function
NO contact
Function
Proximity switch
Scan field (mm)
497
Optical resolution (mm)
82.6
Light type
IR
Cascadable
No
Number of beams
6

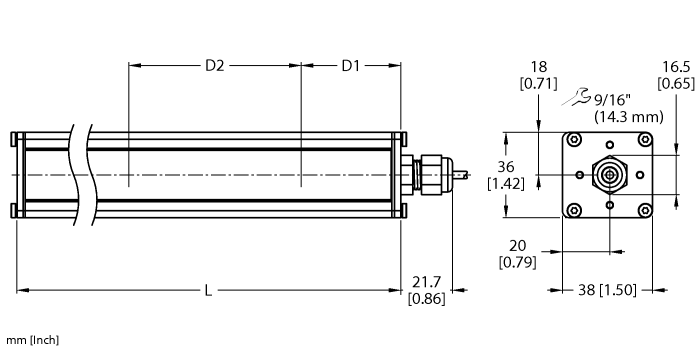

Construction size
38 x 36 x 497 mm
Key Features
Light type
IR
Output function
PNP/NPN
Function
Proximity switch
Max. range (mm)
200
