TP-206.35A-CF-H1141-L400 | TURCK - Your Global Automation Partner
Temperature Detection

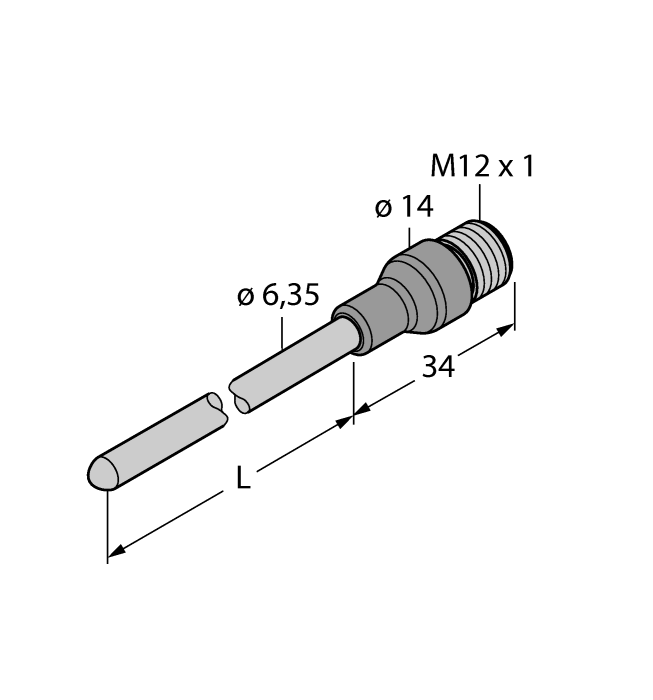

TP-206.35A-CF-H1141-L400
Order ID no. 9910823
home
Home
Loading...
Technical Data
Protection class
IP67
Design
Temperature probe
Process connection
For compression fittings, thermowell or direct mounting
Immersion depth L
400
Detection type
medium contact
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Stainless steel
Housing quality
1.4404 (AISI 316L)
Ambient temperature min.
-40
Ambient temperature max.
120
Mounting conditions
Immersion sensor
Measuring range
-50…500 °C
Electrical output
Resistance
Key Features
Electrical output
Resistance
Process connection
For compression fittings, thermowell or direct mounting
Measuring range
-50…500 °C
In Stock
Price Group
D2
List Price
€66.00
