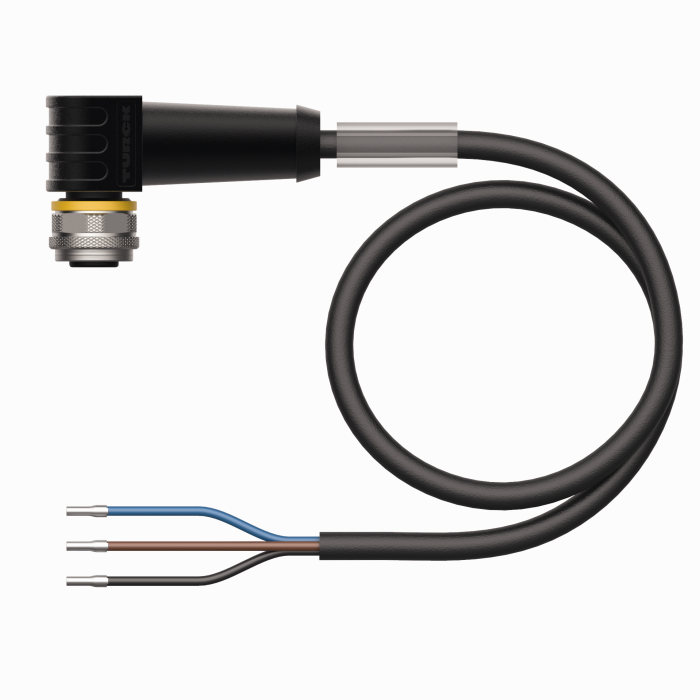

Actuator and Sensor Cable, PUR

WKS4T-25/TXL

Rendelési azonosító sz. 6627816

Cable length (m): 25
Application: Signal
Design: Connection Cable
Connector A: Female, M12 × 1, Angled, A-coded
Number of pins: 3
Coupling nut/screw material A: Brass
Voltage (V): 250
Current (A): 4
Cable quality: PUR
Cable color: Black
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Approvals: cULus
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 80
Core cross-section (mm²): 0.34
Number of Conductors: 3
