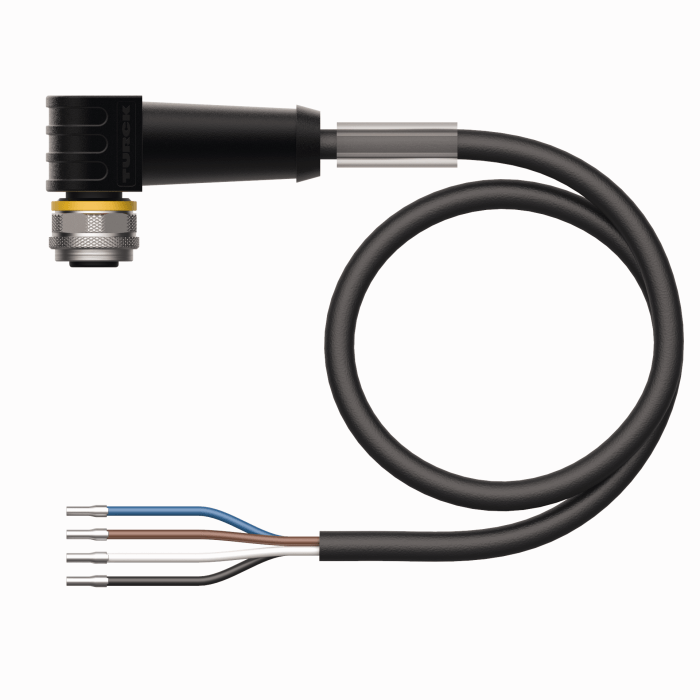

Actuator and Sensor Cable, PUR

WKS4.4T-30/TXL

Rendelési azonosító sz. 6628676

Cable length (m): 30
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 80
Application: Signal
Number of Conductors: 4
Core cross-section (mm²): 0.34
Cable quality: PUR
Cable color: Black
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Approvals: cULus
Connector A: Female, M12 × 1, Angled, A-coded
Number of Pins: 4
Voltage (V): 250
Current (A): 4
Coupling nut/screw material A: Brass
Design: Connection Cable
