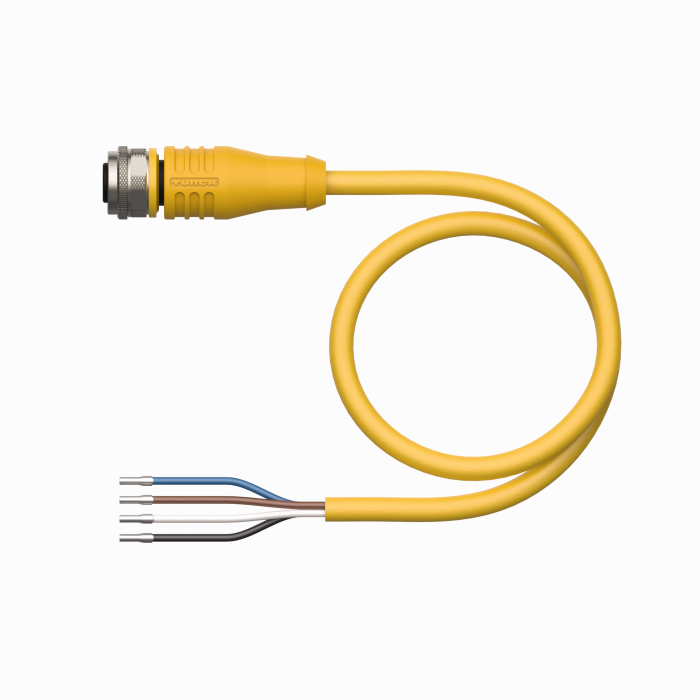

Actuator and Sensor Cable, PUR

RKS4.5T-2/TXY3013

Rendelési azonosító sz. 6631077

Cable length (m): 2
Application: Signal
Design: Connection Cable
Connector A: Female, M12 × 1, Straight, A-coded
Number of pins: 5
Coupling nut/screw material A: Brass
Voltage (V): 60
Current (A): 4
Cable quality: PUR
Cable color: Yellow
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Approvals: cULus
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 80
Core cross-section (mm²): 0.34
Number of Conductors: 5
