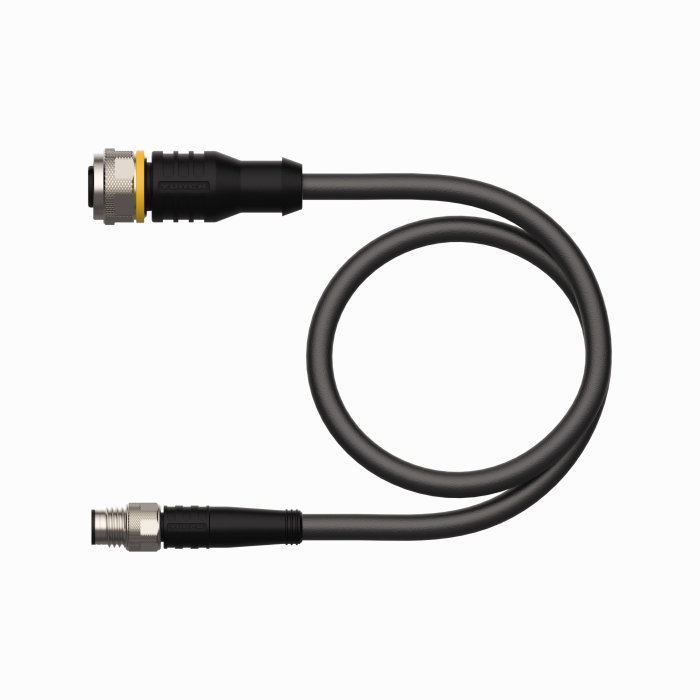

Actuator and Sensor Cable, PUR

RKS4.4T-5-PSGS4M/TXL

Rendelési azonosító sz. 6634648

Cable length (m): 5
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 80
Application: Signal
Number of Conductors: 4
Core cross-section (mm²): 0.34
Cable quality: PUR
Cable color: Black
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Approvals: cULus
Connector A: Female, M12 × 1, Straight, A-coded
Number of Pins: 4
Voltage (V): 50
Current (A): 4
Coupling nut/screw material A: Brass
Coupling nut/screw material B: Brass
Design: Extension Cable
Connector B: Male, M8 × 1, Straight
Number of Pins: 4
