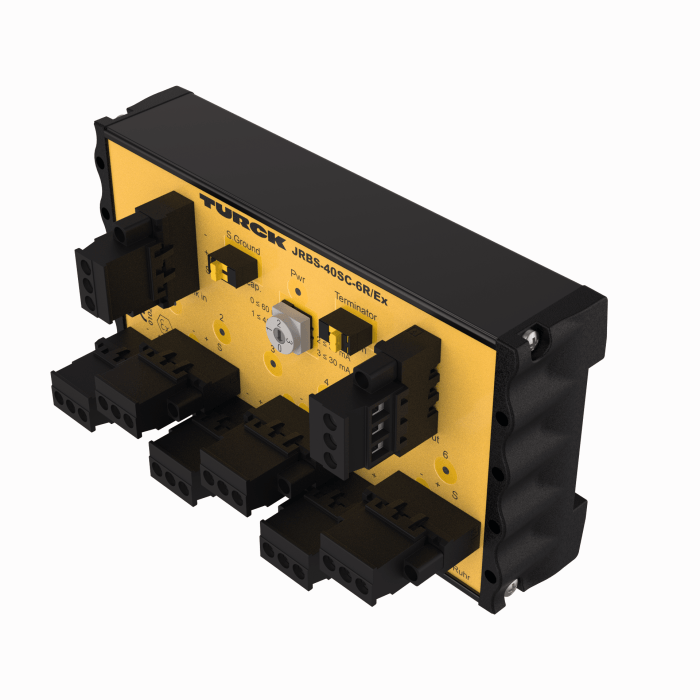

IP20 Junction Box, 6-Channel

JRBS-40SC-6R/EX

Rendelési azonosító sz. 6611460

Protection class: IP20
Electrical connection: Removable terminal block, reverse polarity protected, screw connection
Housing material: Aluminium
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Application: Data
Network protocol: FOUNDATION fieldbus, PROFIBUS-PA
Approvals: ATEX, Ex-Approval
Number of channels: 6
Connection technology signal: Screw terminal
Installation area: zone 1, zone 2, non-Ex
