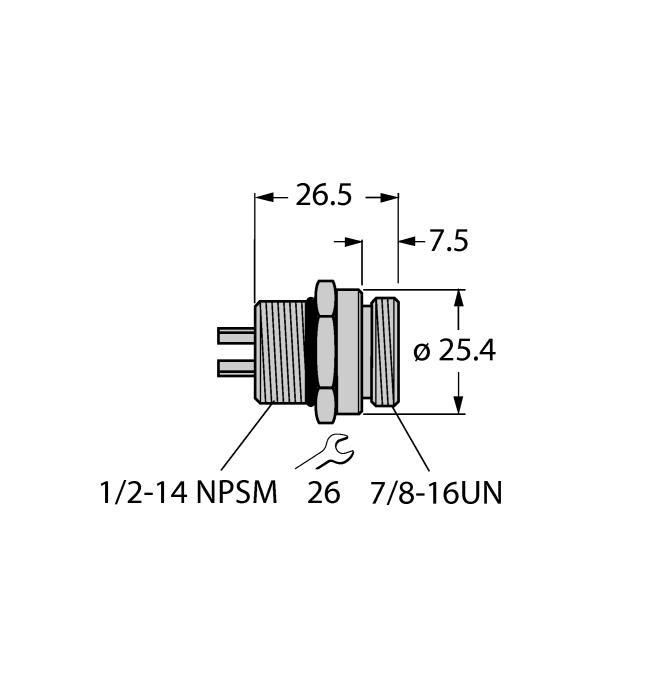

FOUNDATION™ Fieldbus Receptacle

RSFV 49

Rendelési azonosító sz. U3-00703

Network protocol: FOUNDATION fieldbus
Application: Data
Design: Connection Cable
Connector A: Male, 7/8″-16 UN
Number of pins: 4
Receptacle housing material A: Stainless Steel
Screw-in thread: 1/2″-14 NPSM
Voltage (V): 600
Current (A): 9
Approvals: FM Div.2, CSA Div. 2, CSA C22.2 No. 182.3, CE, RoHS, UL Listed, UL 2238
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 105
Connection technology signal: 7/8”
Connection mode: Solder contact
