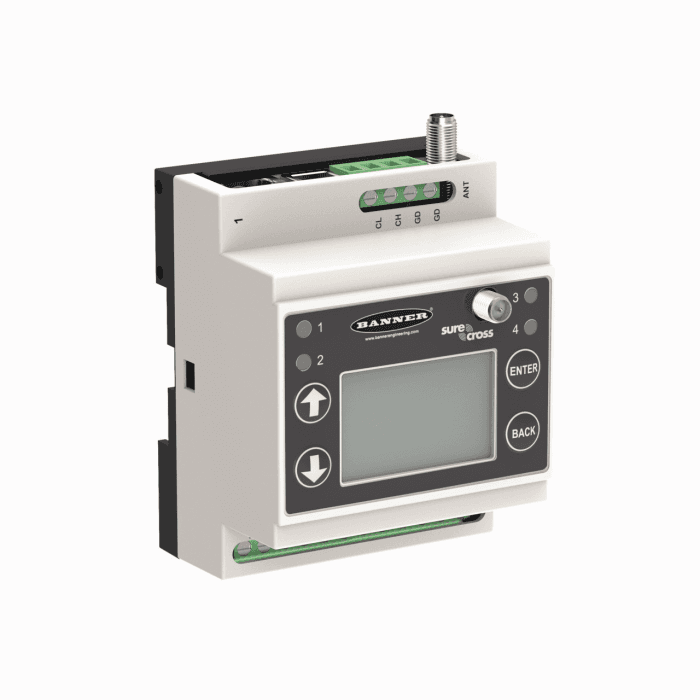

Network Controller

DXM700-B1R3

Rendelési azonosító sz. 3806248

Protection class: IP20
Switching element function: Programmable
Output function: PNP/NPN, analog output
Design: Rectangular
Communication protocol: EtherNet/IP, Modbus TCP, Modbus RTU, PROFINET, RS485
Electrical connection: Screw terminals
Housing material: Plastic
Housing quality: PC
Ambient temperature min. (°C): -20
Ambient temperature max. (°C): 60
Max. range (mm): 3200000
Function: Star topology
Operating voltage: DC
Antenna connection: RP-SMA female connector
Output type: PNP
Runs with battery: No

Communication protocol: EtherNet/IP, Modbus TCP, Modbus RTU, PROFINET, RS485
Function: Star topology
Output type: PNP
