Magnetic Field Sensor

BIM-IKT-Y1X

Rendelési azonosító sz. 10560

Protection class: IP67
Output function: NAMUR
Cable length (m): 2
Cable color: Kék
Design: Téglalap alakú
Electrical connection: Kábel
Housing material: Fém
Housing quality: GD-Zn
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Operating voltage: DC

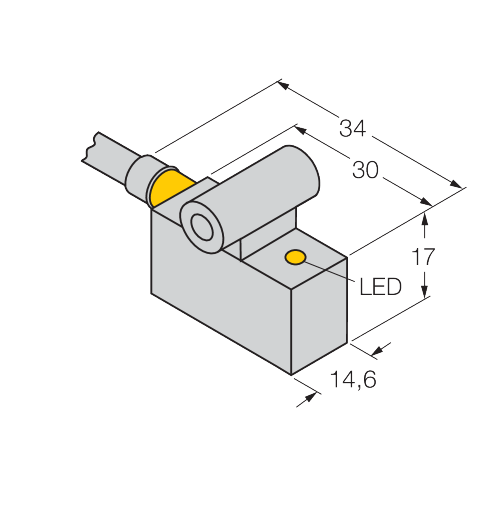

Construction size: 30 x 14.6 x 17 mm
Cylindrical design: Összehúzócsavaros henger, Profilhenger, Fecskefark-henger, külső horony
Base unit: PCE
EAN/UPC code: 4047101145281
Gross weight: 107
Height: 20
Length: 110
Net weight: 107
Dimension unit: MMT
Weight unit: GRM
Volume: 176
Volume unit: CMQ
Width: 80
Dimensions: 30 mm x 14,6 mm x 17 mm
Quality active face: PA12-GF30
Switching frequency (kHz): 1

Electrical connection: Cable
Cylindrical design: Tie-rod cylinder, Profile cylinder, Dovetail cylinder, external groove
Output function: NAMUR
