Magnetic Field Sensor

BIM-IKM-AP6X2-H1141/S34

Rendelési azonosító sz. 46272

Design: Rectangular
Protection class: IP67
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Metal
Housing quality: GD-Zn
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 70
Output function: PNP
Switching element function: NO contact
Operating voltage: DC

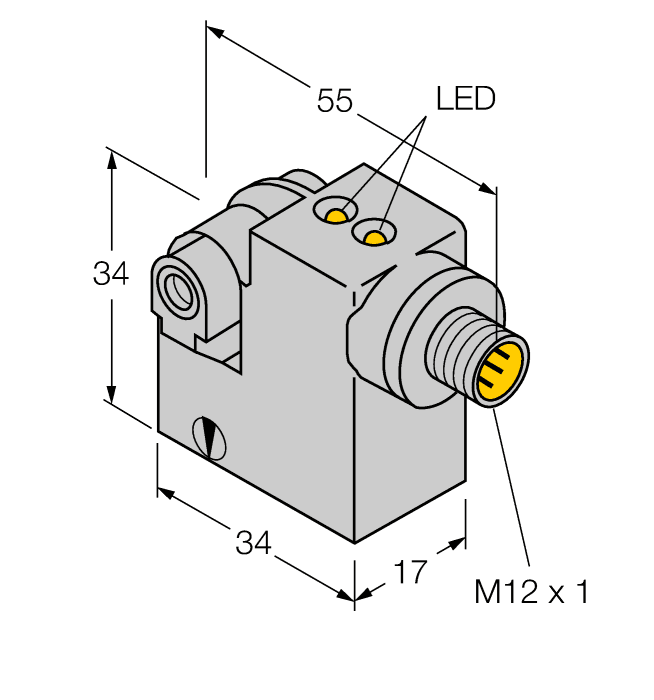

Construction size: 34 x 17 x 34 mm
Cylindrical design: Tie-rod cylinder, Profile cylinder, Dovetail cylinder, external groove

Electrical connection: Connector
Cylindrical design: Tie-rod cylinder, Profile cylinder, Dovetail cylinder, external groove
Output function: PNP
