Magnetic Field Sensor

BIM-UNTK-AP6X-0.3-PSG3M

Rendelési azonosító sz. 4686015

Protection class: IP68
Switching element function: NO contact
Output function: PNP
Cable length: 0.3
Cable color: Gray
Design: Rectangular
Electrical connection: Cable with connector
Connector type: M8 × 1
Housing material: Plastic
Housing quality: PP
Ambient temperature min.: -25
Ambient temperature max.: 70
Operating voltage: DC

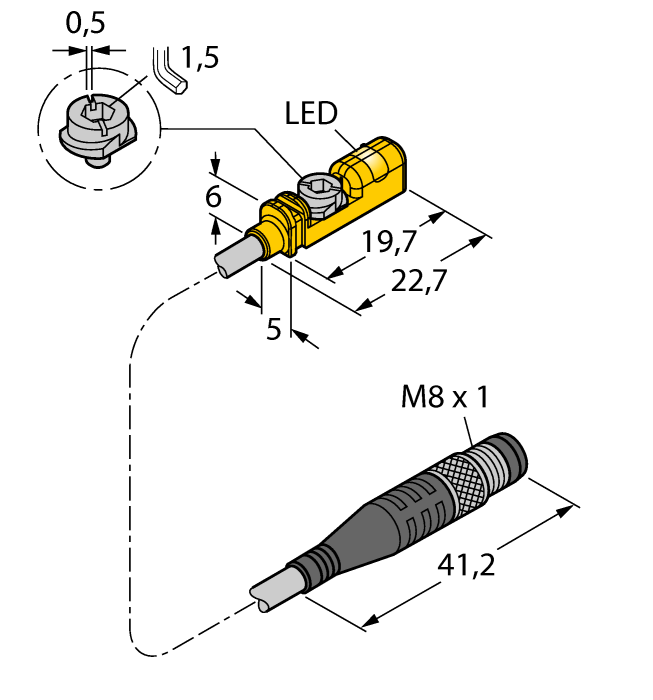

Construction size: 19.7 x 5 x 6 mm
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder

Electrical connection: Cable with connector
Cylindrical design: Dovetail cylinder, grooved, T-groove cylinder, Round cylinder, Tie-rod cylinder
Output function: PNP
