Pressure Transmitter

PT350R-2004-I2-WM0.5

Rendelési azonosító sz. 100000990

Protection class: IP65
Output function: Analog output current
Approvals: cULus
Design: Without display

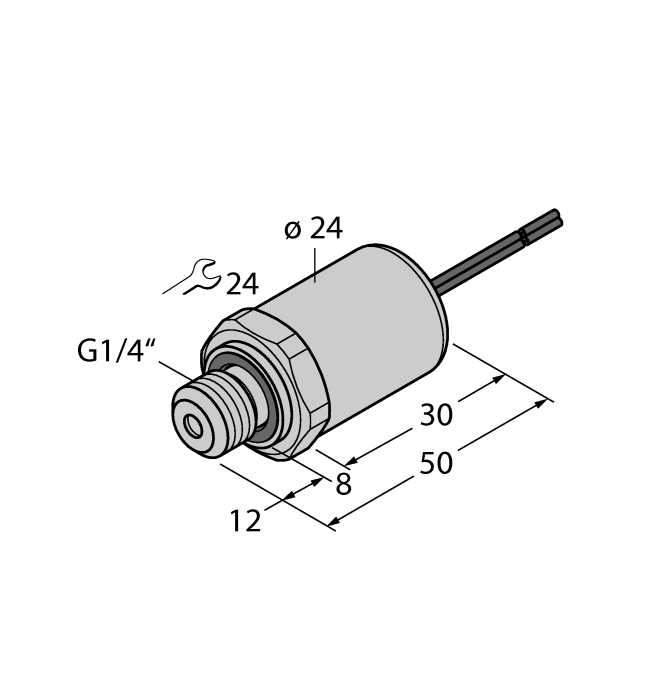

Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Electrical connection: Stranded wires
Connector type: Open end
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Media temperature min.: -40
Media temperature max.: 135
Ambient temperature min.: -30
Ambient temperature max.: 85
Operating voltage: DC
Electrical output: Current output (2-wire)
Pressure type: Relative pressure
Material pressure transducer: Stainless steel 1.4435 (AISI 316L)
Pressure range: 0…350 bar

Electrical output: Current output (2-wire)
Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Pressure range: 0…350 bar
