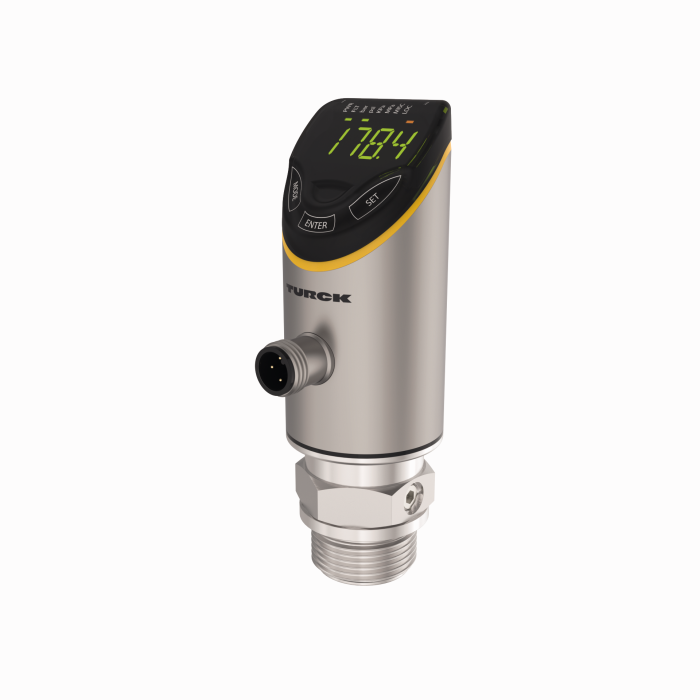

Front-Flush Pressure Sensor

PS311-100-06-LI2UPN8-H1141

Rendelési azonosító sz. 100001579

Protection class: IP66, IP67, IP69K
Switching element function: NO/NC
Output function: PNP/NPN
Design: With display
Process connection: G 3/4” male thread, front-flush
Communication protocol: IO-Link
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5
Media temperature min.: -30
Media temperature max.: 80
Ambient temperature min.: -40
Ambient temperature max.: 80
Electrical output: Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link
Pressure type: Relative pressure
Pressure range: 0…100 bar

Communication protocol: IO-Link
Electrical output: Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link
Process connection: G 3/4” male thread, front-flush
Pressure range: 0…100 bar

Raktáron
Listaár	659,00 EUR
