Pressure Transmitter

PT0.2V-1013-U1-WM0.5

Rendelési azonosító sz. 100003687

Raktáron
Listaár	144,00 EUR

Design: Without display

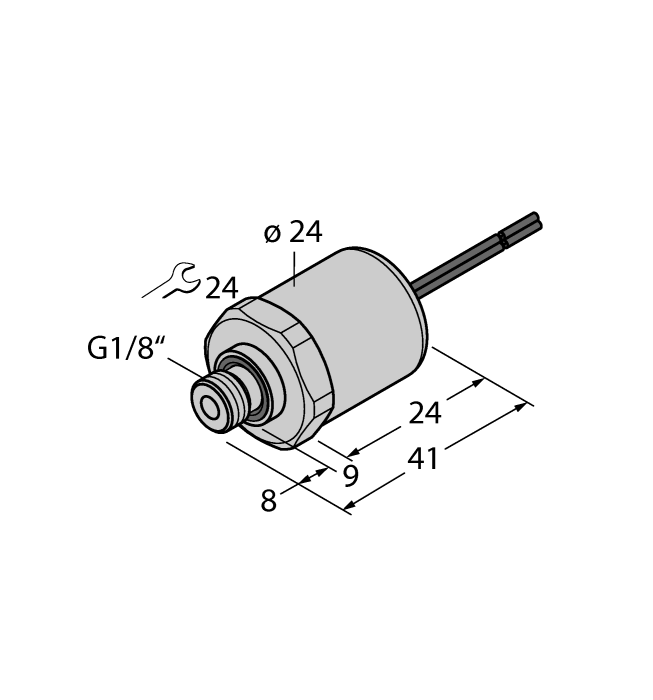

Process connection: G1/8″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Electrical output: Voltage output (3-wire)
Protection class: IP65
Electrical connection: Stranded wires
Connector type: Open end
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Ambient temperature min. (°C): -30
Ambient temperature max. (°C): 85
Approvals: cULus
Output function: Analog output voltage
Media temperature min. (°C): -40
Media temperature max. (°C): 125
Pressure type: Relative pressure
Material pressure transducer: Ceramic Al₂O₃
Operating voltage: DC
Pressure range: -0.2…0.2 bar

Electrical output: Voltage output (3-wire)
Process connection: G1/8″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Pressure range: -0.2…0.2 bar
