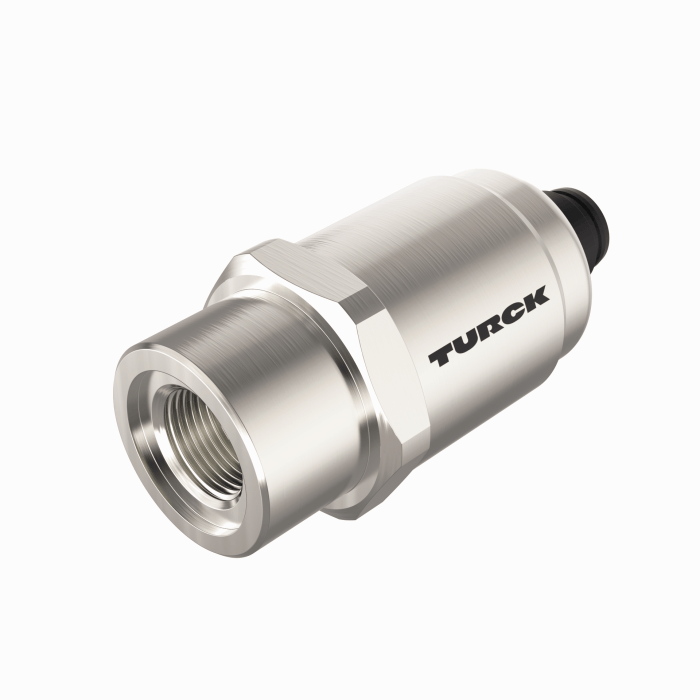

Pressure Transmitter
PT0.05V-1501-I2-H1141/D840
Rendelési azonosító sz. 100004257| Raktáron | |
| Árcsoport | D2 |
| Listaár | 269,00 EUR |
Tétel összesen269,00 EUR
Mennyiség
- Design
- Without display
- Process connection
- G 1/4” female thread (front sealing)
- Electrical output
- Current output (2-wire)
- Protection class
- IP67
- Electrical connection
- Connector
- Connector type
- M12 × 1
- Housing material
- Stainless-steel/Plastic
- Housing quality
- 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
- Ambient temperature min. (°C)
- -25
- Ambient temperature max. (°C)
- 85
- Approvals
- cULus
- Media temperature min. (°C)
- -15
- Media temperature max. (°C)
- 85
- Pressure type
- Relative pressure
- Pressure transducer material
- Ceramic Al₂O₃
- Operating voltage
- DC
- Pressure range
- -0.05…0.05 bar
Főbb jellemzők
- Electrical output
- Current output (2-wire)
- Process connection
- G 1/4” female thread (front sealing)
- Pressure range
- -0.05…0.05 bar
