Pressure Transmitter

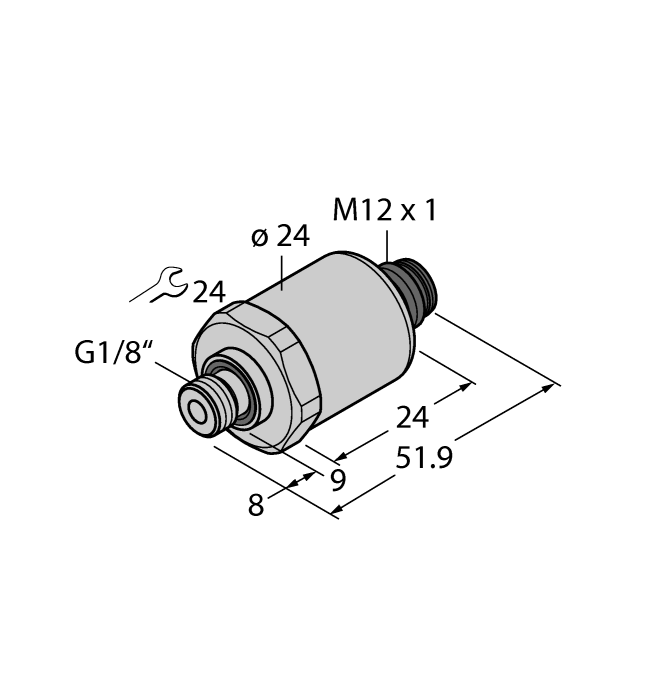

PT0.2V-1013-U1-H1143

Rendelési azonosító sz. 100004699

Protection class: IP67
Output function: Analog output voltage
Approvals: cULus
Design: Without display
Process connection: G1/8″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Media temperature min. (°C): -40
Media temperature max. (°C): 125
Ambient temperature min. (°C): -30
Ambient temperature max. (°C): 85
Operating voltage: DC
Electrical output: Voltage output (3-wire)
Pressure type: Relative pressure
Material pressure transducer: Ceramic Al₂O₃
Pressure range: -0.2…0.2 bar

Electrical output: Voltage output (3-wire)
Process connection: G1/8″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Pressure range: -0.2…0.2 bar
