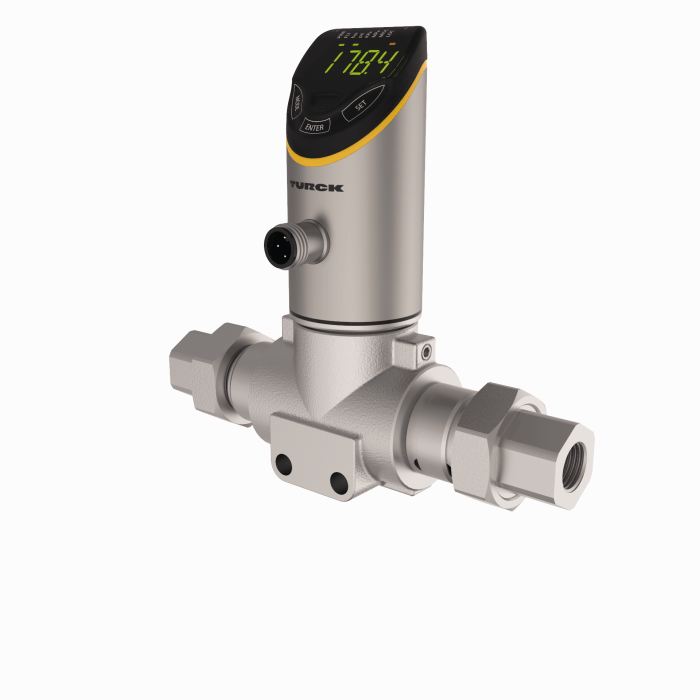

Pressure Sensor

PS325-40D-02-2UPN8-H1141

Rendelési azonosító sz. 100017546

Protection class: IP66, IP67, IP69K
Switching element function: NO/NC
Output function: PNP/NPN
Approvals: cULus
Design: With display (integrated probe)
Process connection: 1/4″ NPT-18 female thread
Communication protocol: IO-Link
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5
Media temperature min.: -30
Media temperature max.: 80
Ambient temperature min.: -40
Ambient temperature max.: 80
Electrical output: 2 × switching output, IO-Link
Pressure type: Differential Pressure
Pressure range: 0…40 bar
