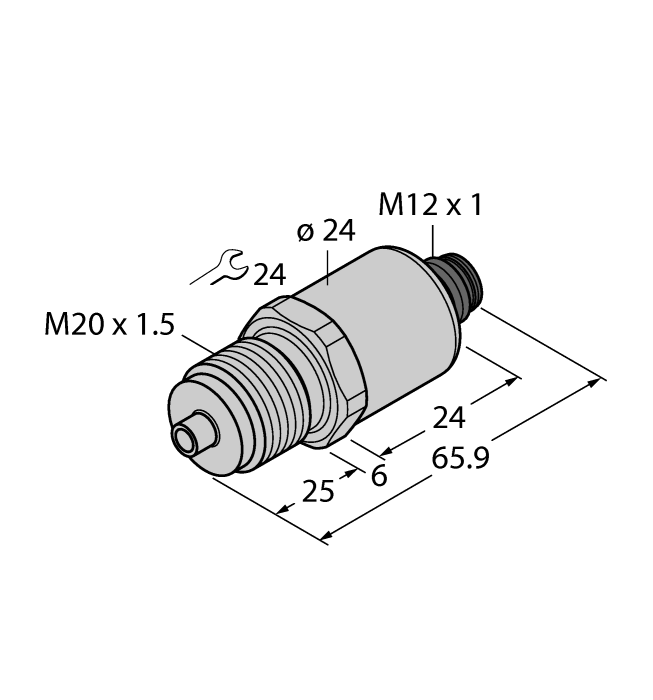

Pressure Transmitter

PT25R-1020-IX-H1143

Rendelési azonosító sz. 100019844

Design: Without display
Process connection: M20 × 1.5 male thread, front sealing and manometer (combi)
Electrical output: Current output (2-wire)
Protection class: IP67
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Ambient temperature min.: -25
Ambient temperature max.: 85
Approvals: cULus
Output function: Analog output current
Media temperature min.: -30
Media temperature max.: 120
Pressure type: Relative pressure
Material pressure transducer: Ceramic Al₂O₃
Operating voltage: DC
Pressure range: 0…25 bar

Electrical output: Current output (2-wire)
Process connection: M20 × 1.5 male thread, front sealing and manometer (combi)
Pressure range: 0…25 bar

Raktáron
Listaár	237,00 EUR
