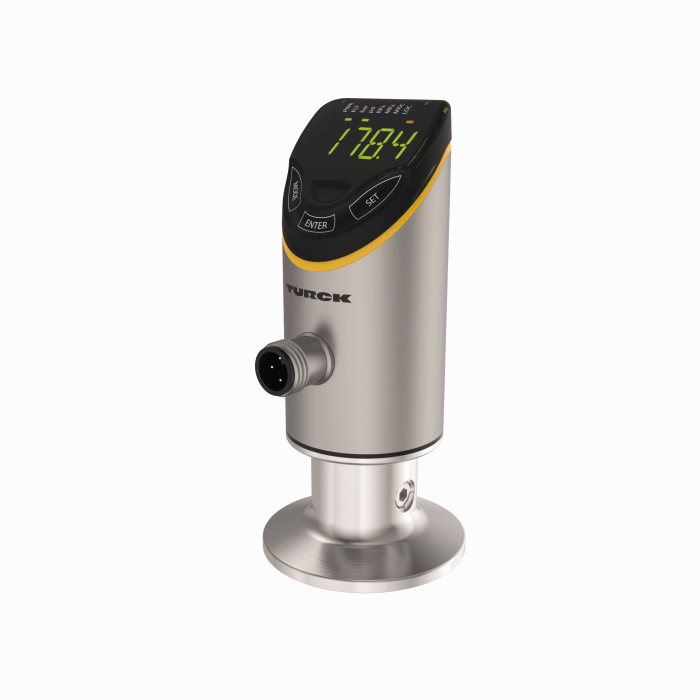

Front-Flush Pressure Sensor

PS311-2.5V-77-LI2UPN8-H1141

Rendelési azonosító sz. 100021443

Design: With display
Process connection: Tri-Clamp 1 1/2″ front-flush
Electrical output: Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link
Communication protocol: IO-Link
Protection class: IP66, IP67, IP69K
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/Grilamid TR90 UV
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 80
Output function: PNP/NPN
Switching element function: NO/NC
Media temperature min. (°C): -30
Media temperature max. (°C): 80
Pressure type: Relative pressure
Pressure range: -1…2.5 bar

Communication protocol: IO-Link
Electrical output: Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link
Process connection: Tri-Clamp 1 1/2″ front-flush
Pressure range: -1…2.5 bar
