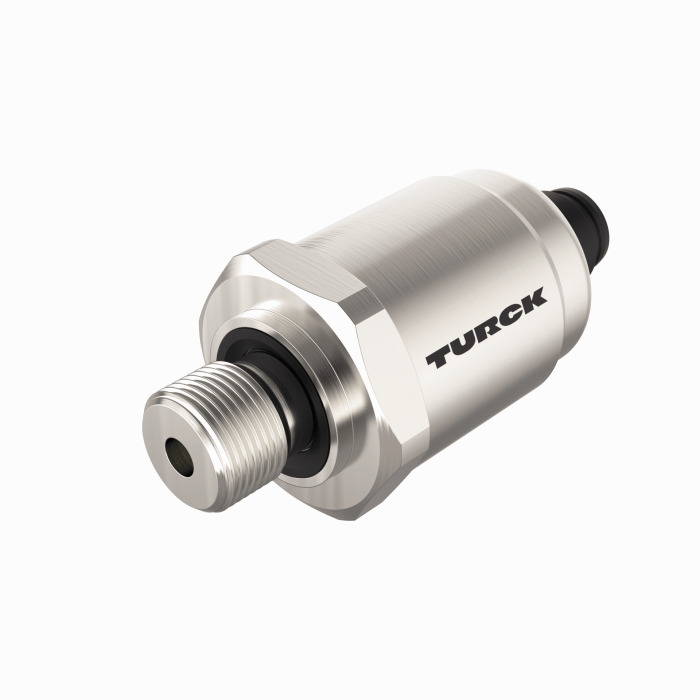

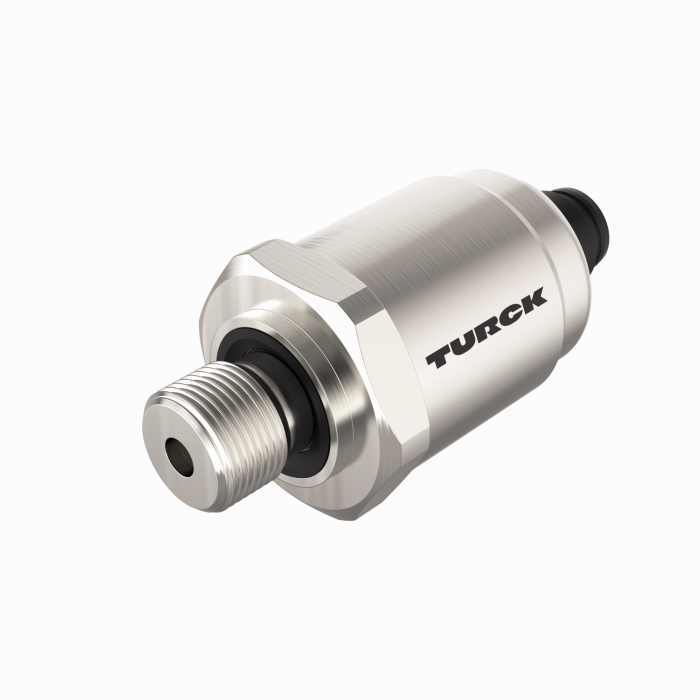

Pressure Transmitter

PT0.16R-1504-I2-H1143/D840

Rendelési azonosító sz. 100022042

Design: Without display
Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Electrical output: Current output (2-wire)
Protection class: IP67
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Ambient temperature min.: -25
Ambient temperature max.: 85
Approvals: cULus
Media temperature min.: -15
Media temperature max.: 85
Pressure type: Relative pressure
Material pressure transducer: Ceramic Al₂O₃
Operating voltage: DC
Pressure range: 0…0.16 bar

Electrical output: Current output (2-wire)
Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Pressure range: 0…0.16 bar

Raktáron
Listaár	269,00 EUR
