Pressure Transmitter

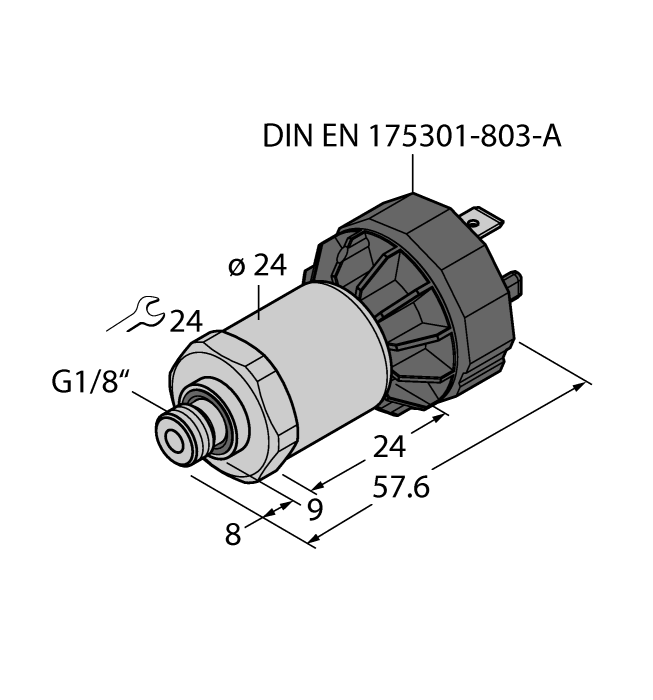

PT4R-1013-U3-DA91

Rendelési azonosító sz. 100028302

Design: Without display
Process connection: G1/8″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Electrical output: Voltage output (3-wire)
Protection class: IP65
Electrical connection: Connector
Connector type: DIN EN 175301-803 Form A
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Ambient temperature min. (°C): -30
Ambient temperature max. (°C): 85
Approvals: cULus
Output function: Analog output voltage
Media temperature min. (°C): -40
Media temperature max. (°C): 125
Pressure type: Relative pressure
Material pressure transducer: Ceramic Al₂O₃
Operating voltage: DC
Pressure range: 0…4 bar

Electrical output: Voltage output (3-wire)
Process connection: G1/8″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring

Raktáron
Listaár	144,00 EUR
