Pressure Transmitter

PT10R-2013-IOL-H1141

Rendelési azonosító sz. 100034037

Protection class: IP67
Switching element function: NO/NC
Output function: PNP/NPN
Approvals: cULus
Design: Without display

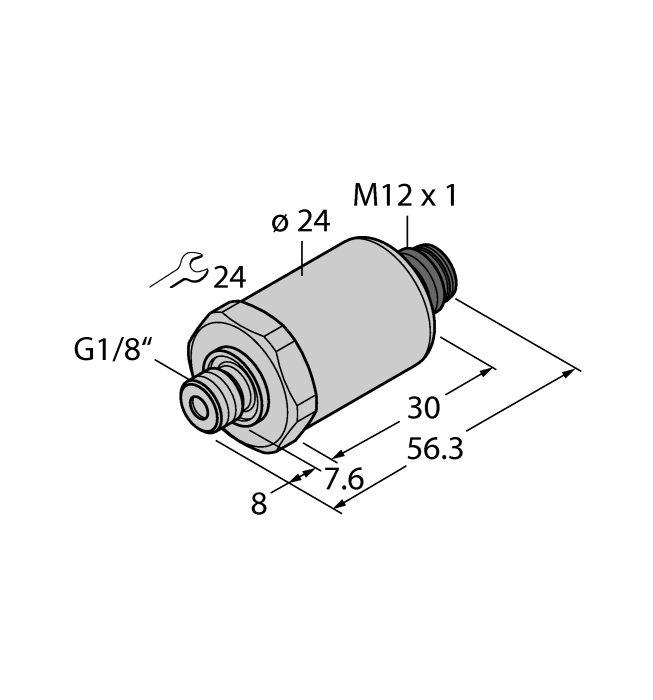

Process connection: G1/8″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Communication protocol: IO-Link
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Media temperature min. (°C): -40
Media temperature max. (°C): 135
Ambient temperature min. (°C): -30
Ambient temperature max. (°C): 85
Operating voltage: DC
Electrical output: 2 × switching output
Pressure type: Relative pressure
Material pressure transducer: Stainless steel 1.4016 (AISI 430)
Pressure range: 0…10 bar

Communication protocol: IO-Link
Electrical output: 2 × switching output
Process connection: G1/8″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Pressure range: 0…10 bar
