Pressure Transmitter

PT6R-1004-U1-DA91

Rendelési azonosító sz. 6836182

Design: Without display

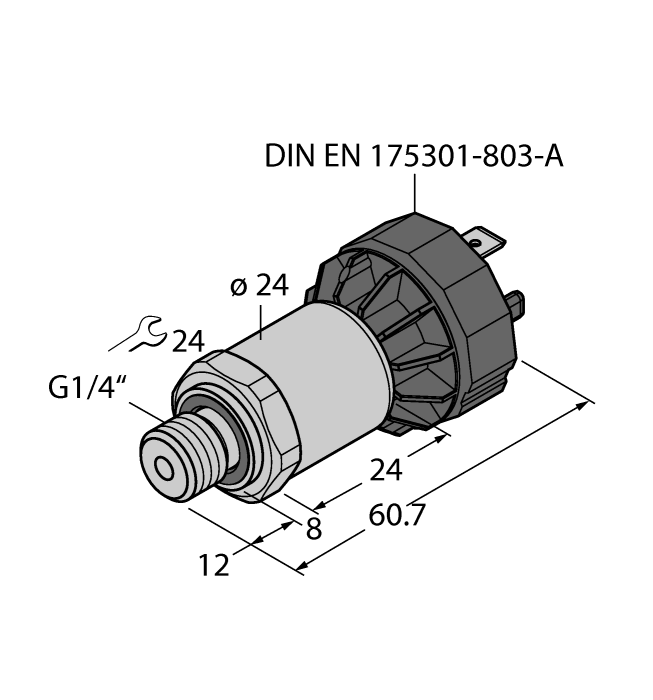

Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Electrical output: Voltage output (3-wire)
Protection class: IP65
Electrical connection: Connector
Connector type: DIN EN 175301-803 Form A
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Ambient temperature min.: -30
Ambient temperature max.: 85
Approvals: cULus
Output function: Analog output voltage
Media temperature min.: -40
Media temperature max.: 125
Pressure type: Relative pressure
Material pressure transducer: Ceramic Al₂O₃
Operating voltage: DC
Pressure range: 0…6 bar

Electrical output: Voltage output (3-wire)
Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Pressure range: 0…6 bar

Raktáron
Listaár	139,00 EUR
