Temperature Detection

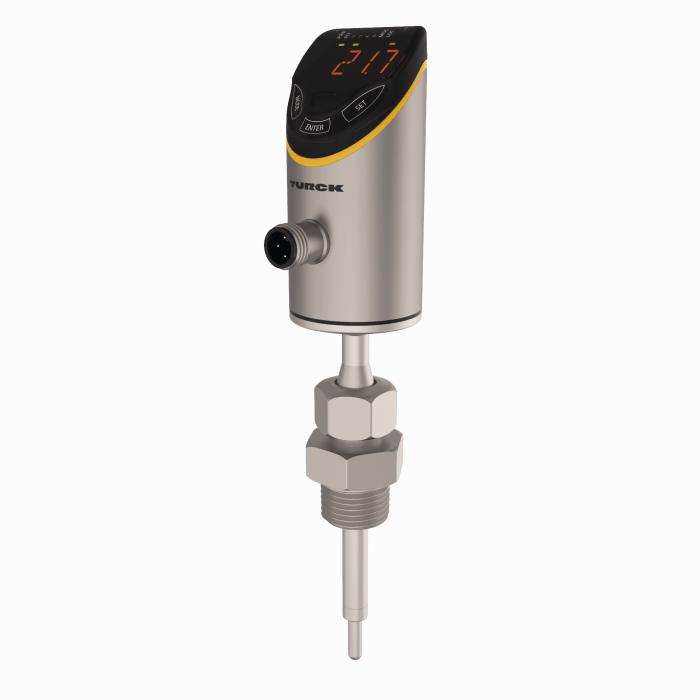

TS700-L050-16-LI2UPN8-H1141

Rendelési azonosító sz. 100004382

Protection class: IP66, IP67, IP69K
Switching element function: NO/NC programmable
Output function: PNP/NPN
Approvals: cULus
Design: With display (integrated probe)
Process connection: 1/2″ NPT male thread
Immersion depth L (mm): 50
Detection type: medium contact
Communication protocol: IO-Link
Electrical connection: Connector
Connector type: M12 × 1
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5
Ambient temperature min. (°C): -40
Ambient temperature max. (°C): 80
Operating voltage: DC
Measuring range: -50…150 °C
Electrical output: Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link

Communication protocol: IO-Link
Electrical output: Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link
Process connection
