piconet Extension Module for IP-Link

SNNE-0808D-0001

Order ID no. 6824208

In Stock

Ambient temperature max. (°C): 55
Ambient temperature min. (°C): 0
Approvals: cULus
Connection technology signal: M8
Device type: Extension module

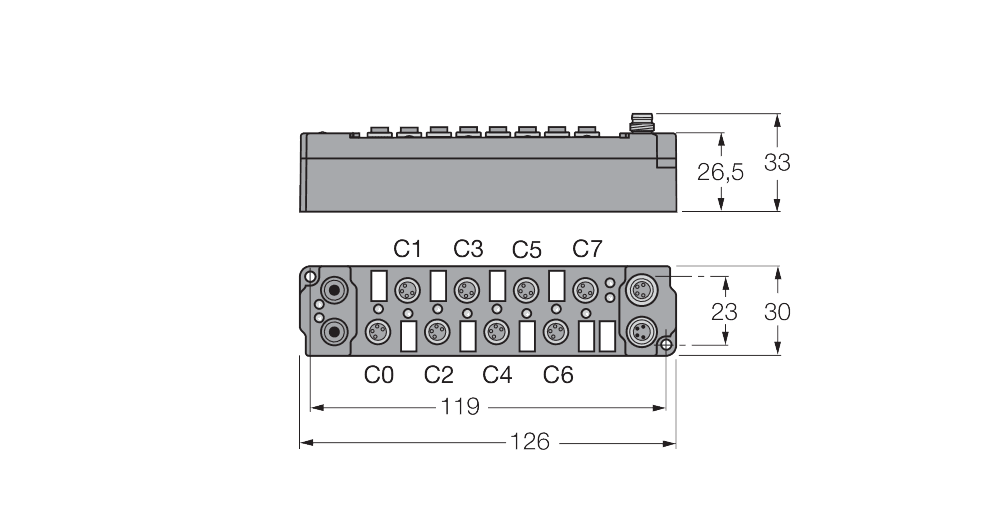

Dimensions: 126 mm x 30 mm x 26,5 mm
Network protocol: CANopen, DeviceNet, EtherNet/IP, Modbus TCP, PROFIBUS-DP, PROFINET
Number of channels: 16
Operating voltage: DC
Output voltage: 20…29 VDC from load voltage
Protection class: IP67
Signal type: Digital input, Digital input/output, Digital output
Voltage supply connection: 2 x M8

Connection technology signal: M8
Network protocol: PROFIBUS-DP, DeviceNet, CANopen, Modbus TCP, EtherNet/IP, PROFINET
Protection class: IP67
Signal type: Digital output, Digital input, Digital input/output
