Isolating switching amplifier

IM1-12EX-R

Order ID no. 7541226

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: ATEX, CCOE, cFMus, CSA, IECEx, INMETRO, KOSHA, NEPSI, TIIS, TR CU, UL
Digital output: Relay output

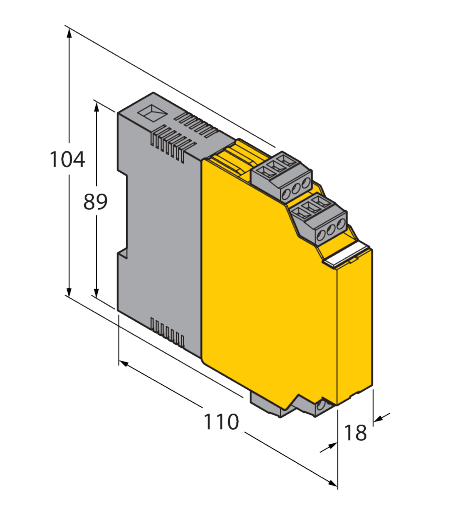

Dimensions: 104 mm x 18 mm x 110 mm
Electrical connection: 4 x 3-pin removable terminal blocks, reverse polarity protected, screw terminal
Ex version: yes
Functional safety (SIL/PL): SIL2
Housing material: Plastic
Housing quality: Polycarbonate/ABS
Nominal voltage: Wide voltage range
Number of channels: 1
Power supply: widerange
Protection class: IP20
Signal type: Digital input
