IMX12-DI01-2S-2PP-0/24VDC | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

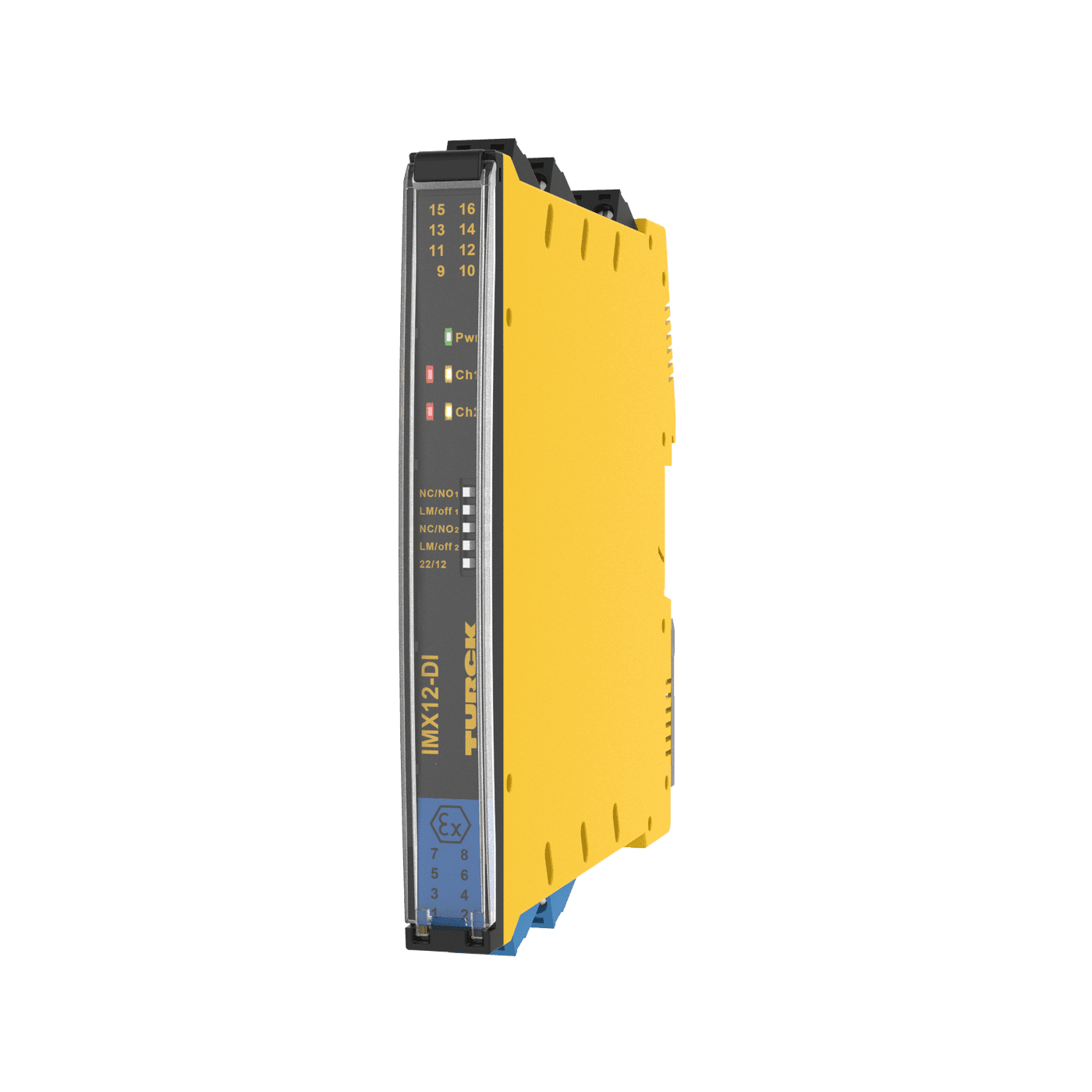

Isolating switching amplifier
IMX12-DI01-2S-2PP-0/24VDC
Order ID no. 7580024
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Approvals
ATEX, cULus, IECEx, INMETRO, KOSHA, NEPSI, TR CU
Digital output
Push-pull output
Dimensions
120 mm x 12,5 mm x 117 mm
Electrical connection
Removable screw terminals, 2-pin
Ex version
yes
Functional safety (SIL/PL)
SIL2
Housing material
Plastic
Housing quality
Polycarbonate/ABS
Nominal voltage
24 VDC
Number of channels
2
Power supply
24 VDC
Protection class
IP20
Signal type
Digital input
Key Features
Number of channels
2
Signal type
Digital input
Nominal voltage
24 VDC
In Stock
Price Group
D3
List Price
183,00 EUR
