PVA375N6RQ | TURCK - Your Global Automation Partner
Pick-to-Light
PVA375N6RQ
Order ID no. 3051924
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
0
Cable length (m)
2
Connector type
M12 x 1
Design
Rectangular

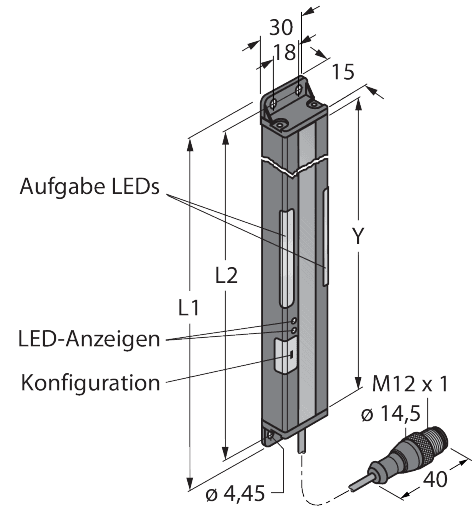

Dimensions
416,6 mm x 30 mm x 15 mm
Electrical connection
Cable with connector
Function
Opposed mode sensor
Housing material
Metal
Housing quality
AL
Housing surface
Black
Input type
Bipolar (PNP/NPN)22
Max. range (mm)
2000
Number of beams
16
Number of colors/segments
1
Operating mode
Receiver
Operating voltage
DC
Optical resolution (mm)
25
Output function
NPN
Protection class
IP62
Scan field (mm)
375
Switching element function
NO/NC
Key Features
Scan field (mm)
375
Number of colors/segments
1
Output function
NPN
In Stock
Price Group
F3
List Price
€704.00
