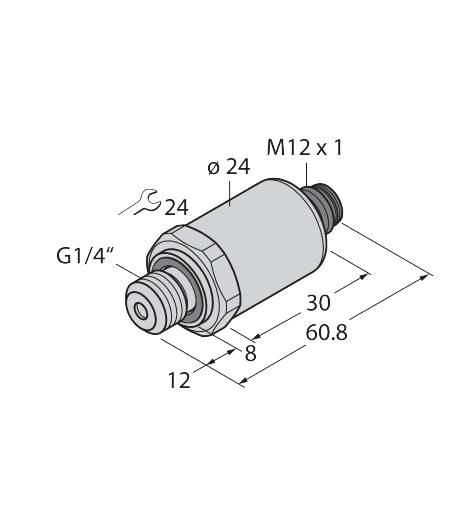

PT1V-2004-IOL-H1141

Order ID no. 100035904

Base unit: PCE
EAN/UPC code: 4047101588743
Electrical output: 2 × switching output
Gross weight: 95
Height: 40
Length: 100
Net weight: 95
Dimension unit: MMT
Weight unit: GRM
Volume: 0.28
Volume unit: DMQ
Width: 70
Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Communication protocol: IO-Link
Electrical connection: Connector
Connector type: M12 x 1
Design: Without display
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Material pressure transducer: Stainless steel 1.4016 (AISI 430)
Process connection: G1/4″ male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
Media temperature max. (°C): 135
Media temperature min. (°C): -40
Pressure range: -1...1 bar
Operating voltage: DC
Output function: PNP/NPN
Pressure type: Relative pressure
Protection class: IP67
Switching element function: NO/NC
