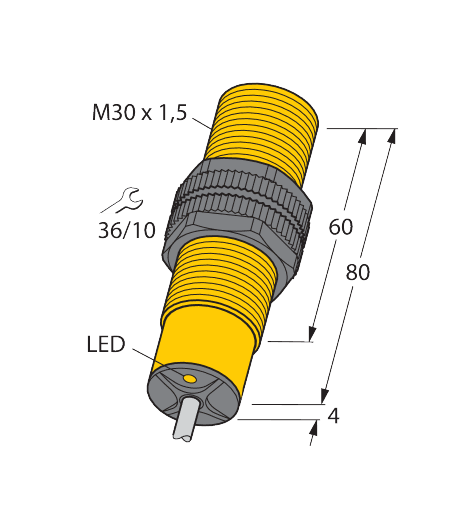

Capacitive sensor

BCF10-S30-AZ3X/S1181

Order ID no. 2503042

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable length (m): 2
Construction size: ⌀ 30 mm
Design: Threaded barrel
Electrical connection: Cable
Function: For highly viscous media
Housing material: Plastic
Housing quality: PA12-GF30, PEI
Measuring principle: Capacitive
Mounting conditions: Flush
Operating voltage: AC
Output function: 2-wire
Protection class: IP67
Quality active face: PA12-GF30
Rated switching distance (mm): 10
Special features: Improved background suppression, Increased EMC protection, Suited for highly viscous media
Switching element function: normally open NO
Switching frequency (kHz): 0.02
