Capacitive sensor

BC10-S30-Y1X

Order ID no. 20100

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Approvals: ATEX II 1 D, ATEX II 2 D, ATEX II 2 G, ATEX II 3 D, ATEX II 3 G, CE, CSA, FM, IECEx, INMETRO, KOSHA, NEPSI, PL c, SIL 2, TIIS
Cable length (m): 2

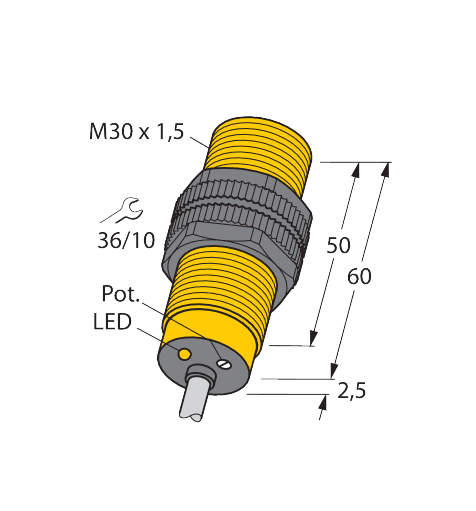

Construction size: ⌀ 30 mm
Design: Threaded barrel
Dimensions: 62,5 mm
Electrical connection: Cable
Housing material: Plastic
Housing quality: PA12-GF30, PEI
Measuring principle: Capacitive
Mounting conditions: Flush
Operating voltage: DC
Output function: NAMUR
Protection class: IP67
Quality active face: PA12-GF30
Rated switching distance (mm): 15
Switching frequency (kHz): 0.1
