BC3-M12-RP6X | TURCK - Your Global Automation Partner
Capacitive Sensor

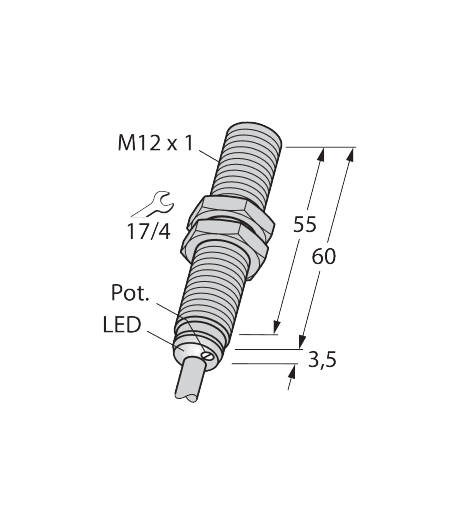

BC3-M12-RP6X
Order ID no. 2601103
home
Home
Loading...
Technical Data
Downloads
Base unit
PCE
EAN/UPC code
4047101202380
Gross weight
86
Height
10
Length
100
Net weight
86
Dimension unit
MMT
Weight unit
GRM
Volume
110
Volume unit
CMQ
Width
110
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Approvals
UL
Cable length (m)
2
Electrical connection
Cable
Design
Threaded barrel
Construction size
⌀ 12 mm
Dimensions
63,5 mm
Housing material
Metal
Housing quality
CuZn
Housing surface
Chrome-plated
Mounting conditions
Flush
Operating voltage
DC
Output function
PNP
Measuring principle
Capacitive
Protection class
IP67
Quality active face
ABS
Rated switching distance (mm)
3
Switching element function
NC contact
Switching frequency (kHz)
0.1
Key Features
Electrical connection
Cable
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
3
In Stock
Price Group
E1
List Price
€162.00
