BI4-M12-2APS8X2-H1141 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

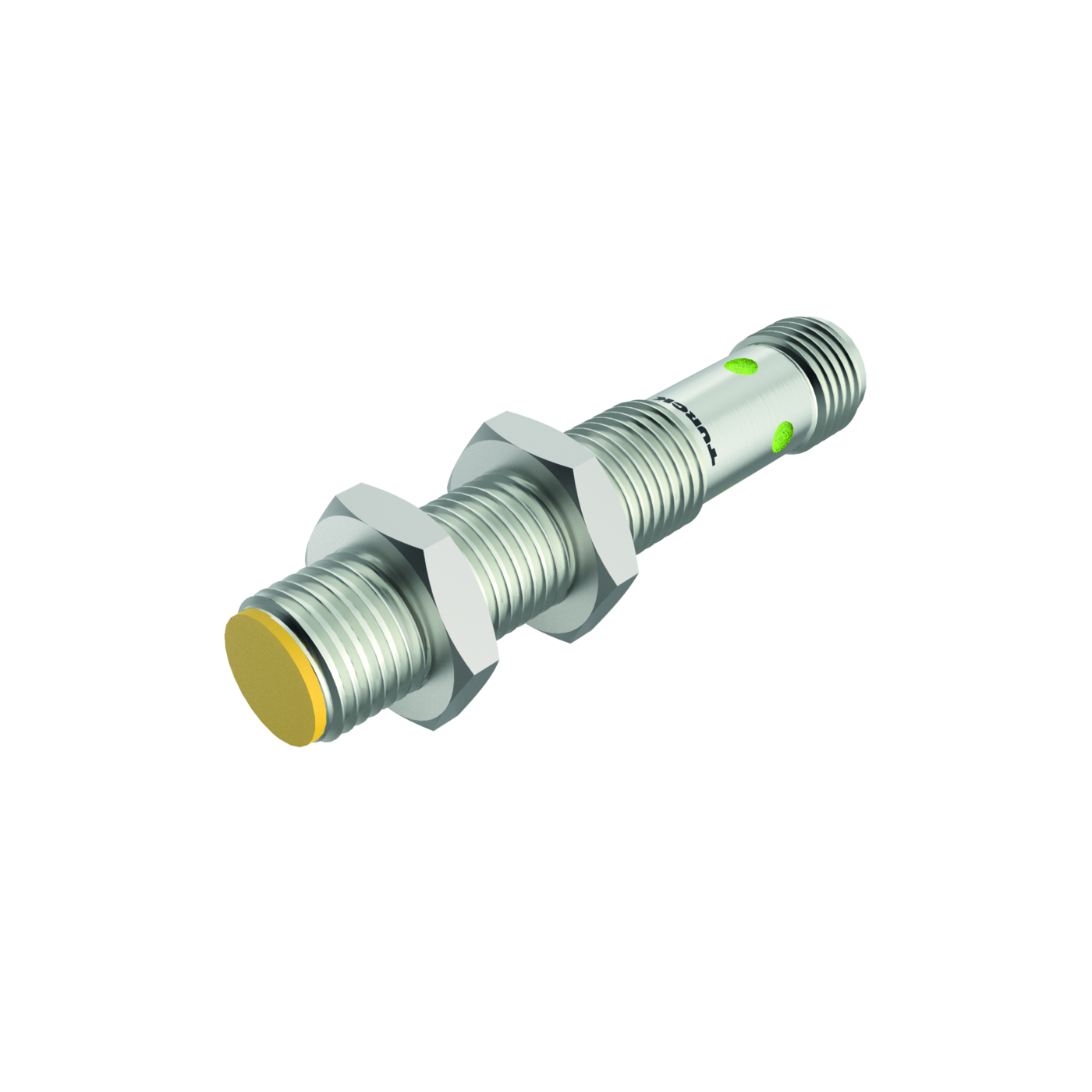

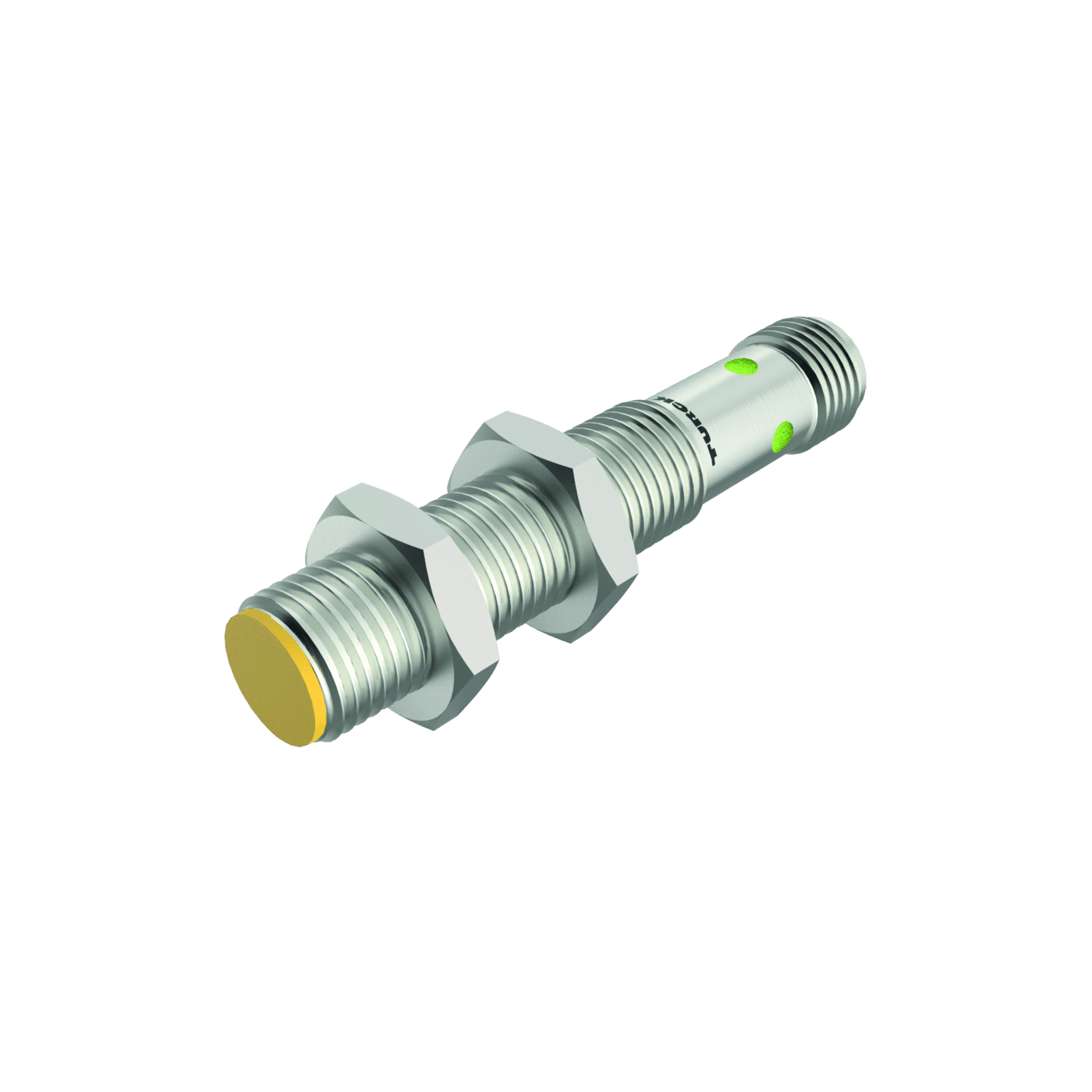

Inductive Safety Sensor
BI4-M12-2APS8X2-H1141
Order ID no. 100016606
home
Home
Loading...
Technical Data
Protection class
IP67
Switching element function
2 x OSSD, NO contact
Output function
PNP
Design
Threaded barrel
Electrical connection
Connector
Connector type
M12 × 1
Housing material
Metal
Housing quality
CuZn
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Function
Inductive safety switch
Mounting conditions
Flush
Operating voltage
DC
Rated switching distance (mm)
4
Construction size
M12 x 1
Cascadable
No
Coding level/tamper protection
Uncoded
Base unit
PCE
EAN/UPC code
4047101520460
Gross weight
46
Height
15
Length
65
Net weight
46
Dimension unit
MMT
Weight unit
GRM
Volume
14.625
Volume unit
CMQ
Width
15

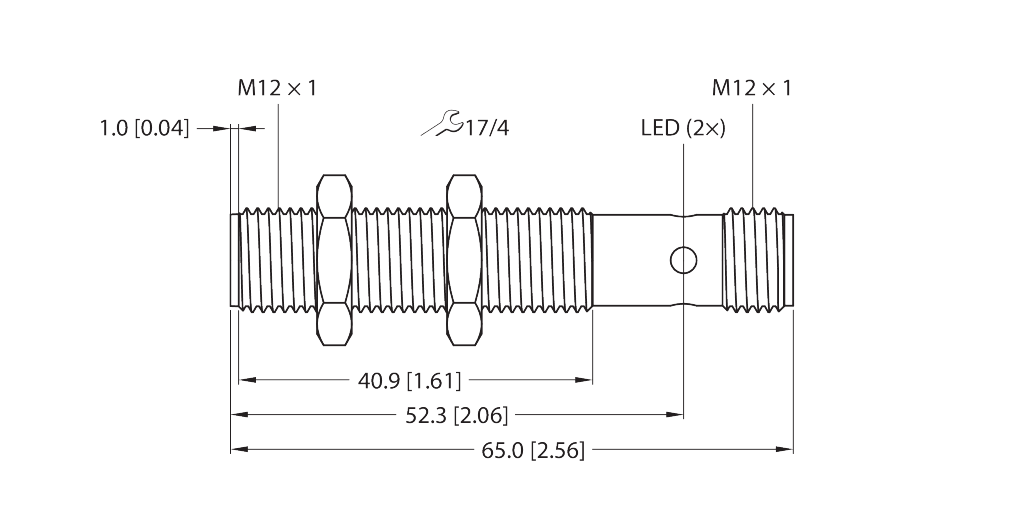

Dimensions
12 mm x 65 mm
Housing surface
Nickel Plated
Quality active face
PA
PL acc. to EN ISO 13849-1
Level d
SIL acc. to IEC 61508
2
Category acc. to ISO 13849-1:2008
2
Switching frequency (kHz)
0.1
Key Features
Electrical connection
Connector
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
4
In Stock
Price Group
E1
List Price
€111.00
Item Total
€111.00
