Inductive Sensor

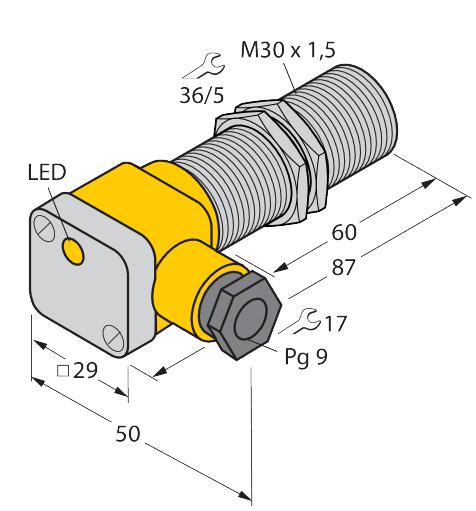

BI10U-EG30SK-AP6X
Order ID no. 1636400
In Stock
Price Group
E1
List Price
€99.00
Item Total
€99.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Turck-Shop
Sensors
Inductive Sensors
BI10U-EG30SK-AP6X
Technical Data
Downloads
Special features
uprox+, Factor 1, Resistant to magnetic fields
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-30
Electrical connection
Terminal chamber
Design
Threaded barrel
Construction size
⌀ 30 mm
Housing material
Stainless steel
Housing quality
1.4301 (AISI 304)
Mounting conditions
Flush
Operating voltage
DC
Output function
PNP
Protection class
IP67
Quality active face
LCP
Rated switching distance (mm)
10
Switching element function
NO contact
Switching frequency (kHz)
2
Key Features
Electrical connection
Terminal chamber
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
10
