Inductive Sensor
NI2-Q6.5-0.1-BDS-2AP6X3-H1141/S34
Order ID no. 1650098
In Stock
home
Turck-Shop
Sensors
Inductive Sensors
NI2-Q6.5-0.1-BDS-2AP6X3-H1141/S34
Technical Data
Downloads
Special features
Resistant to magnetic fields
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Cable color
Gray
Cable length (m)
0.1
Electrical connection
Connector
Connector type
M12 x 1
Design
Monitoring Kit for Spanners

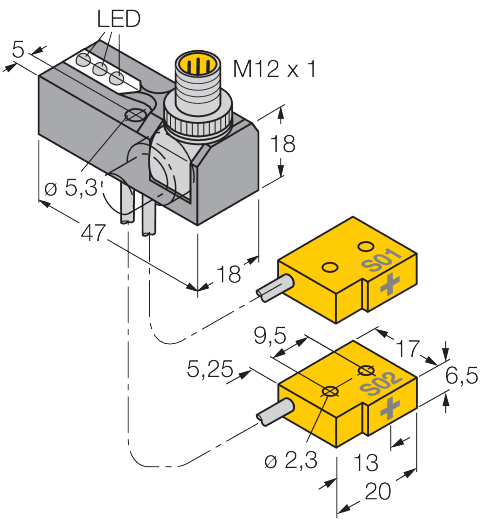

Dimensions
47 mm x 18 mm x 18 mm
Housing material
Plastic
Housing quality
Trogamit
Mounting conditions
Non-flush
Operating voltage
DC
Output function
PNP
Protection class
IP67
Quality active face
PP GR-20
Rated switching distance (mm)
2
Switching element function
NO contact
Switching frequency (kHz)
0.03
Key Features
Electrical connection
Connector
Mounting conditions
Non-flush
Output function
PNP
Rated switching distance (mm)
2
Price Group
E1
List Price
€173.00
Item Total
€173.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
